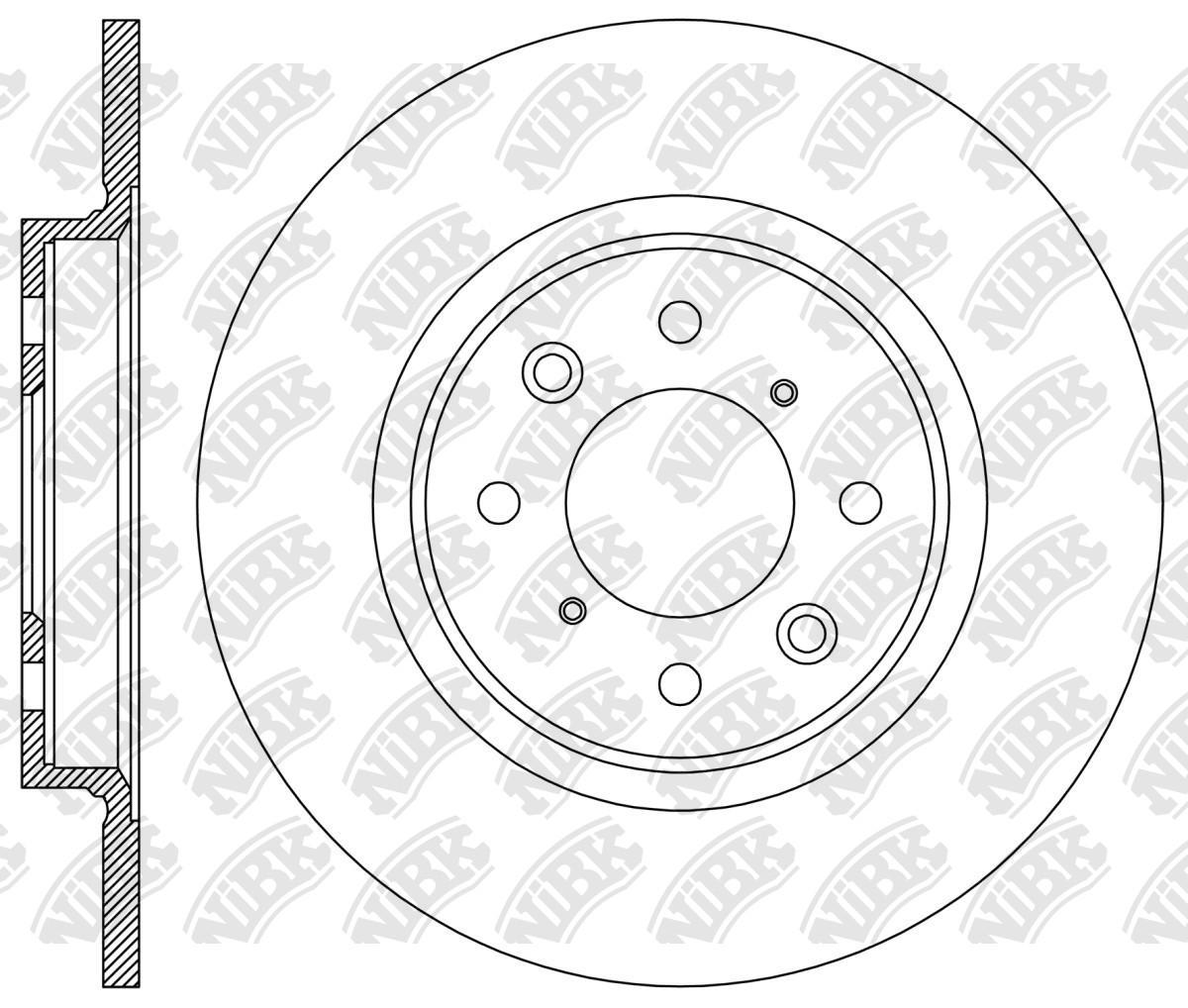

ROTOR DISC » RN2408

Specification

Type
Solid
Outter Ø
260
Num. of holes
4
Hole Ø:
12.8
Disc Thickness (Max)
9
Disc Thickness (Min)
8
Height
31.2
Centering Diameter
61
Pitch Circle Ø
100
Drum Ø:
142.3
Front/Rear
Rear
Structure Material
G3000

Cross Reference

HONDA
42510-TM8-G00
HONDA
42510-TM8-G01
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.12~09.13 1500 LEA-MF6 GP4 RN1089V PN8868 RN2408 PN8398
01.10~03.14 1300 LDA3 ZE2 RN1089V PN8868 DN1377RN2408 PN8398FN28002
01.11~01.14 1300 LDA3 GP1 RN1089V PN8868 DN1377RN2408 FN28002PN8398

Exemption from liability: the catalog data is advisory and can be used for reference only
