ROTOR DISC » RN1677V

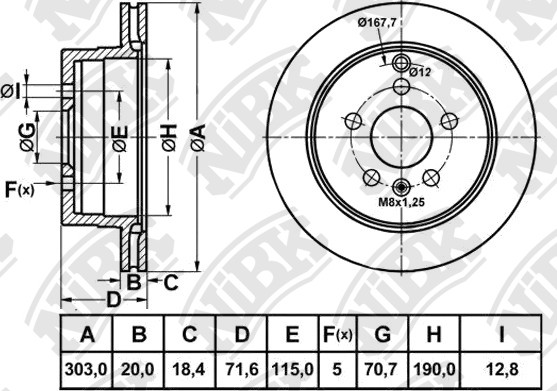

Specification
Type
Vented
Outter Ø
303
Num. of holes
5
Disc Thickness (Max)
20
Height
71.6
Centering Diameter
70.5
Pitch Circle Ø
115
Drum Ø:
186
Disc Thickness (Min)
18.4
Structure Material
G3000
Front/Rear
Rear
Cross Reference
CHEVROLET
20968395
CHEVROLET
96625873
GM
20892952
GM
20968395
GM
25804046
GM
5561178J00
GM
96625873
OPEL
48 04 637
SUZUKI
55611-78J01
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.16~12.17 | 2000 | LNP / Z20D1 | 1LZ26 TH | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LG26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LU26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | 1LZ26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~08.11 | 2000 | Z20S / LLW | 1LZ26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLC26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLE26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLF26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2000 | Z20S / LLW | RLF26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.13~01.18 | 2200 | Z22D1 / LNQ | 1LR26 EUL | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LX26 EUR | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LX26 GL | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2200 | Z22D1 / LNQ | 1LZ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | CD26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | DC23 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | L#26 LHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | LD9 / Z24SED | L#26 RHD | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE5 | CA26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE5 | CD26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | #LZ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.11~01.15 | 2400 | LE9 | 0L#26 RHD ASIA | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.12~01.15 | 2400 | LE9 | 1L#26 LHD ASIA | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LR26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LU26 RHD SG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 2400 | LE9 | 1LX26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 2400 | Z24S | CA26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 03.11~01.18 | 3000 | LF1 | C140 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~03.11 | 3200 | 10 HM | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.12~01.16 | 2400 | LEA | ZLR26 US | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.08~01.12 | 3600 | LY7 | ZLR26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.03~05.09 | 3400 | LNJ | 1L#26 | RN1622V | PN0378PN0068 | RN1677VDN1728 | PN0479 | FN0667 |
| 09.07~08.09 | 3600 | LY7 | 1L#26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.06~09.11 | 2000 | Z20S / LLW | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~03.11 | 2400 | Z24SED | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~03.11 | 3200 | Z32SE | C100 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 07.06~01.11 | 2000 | Z20S / LLW | 0LJ26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 07.06~01.11 | 2000 | Z20S / LLW | RL#26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 05.07~02.11 | 2000 | Z20S1 | CG | RN1622V | PN0068 | RN1677V | PN0479 | |
| 02.11~09.18 | 2200 | Z22D1 DI | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 02.11~09.18 | 2400 | LE5,LE9 | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 09.06~01.11 | 3200 | LU1 | CG | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 11.06~01.12 | 2000 | Z20DMH | J26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 01.11~01.16 | 2200 | A22DM | L07 | RN1622V | PN0068 | RN1677V | PN0479 | |
| 01.11~01.16 | 2200 | Z22D | J26 | RN1622V | PN0068 | RN1677V | PN0479 | |
| 11.06~01.12 | 2400 | Z24XED | H26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 11.06~01.12 | 3200 | Z32SE | H26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
| 11.06~01.12 | 3200 | Z32SE | K26 | RN1622V | PN0068 | RN1677V | PN0479 | FN0667 |
