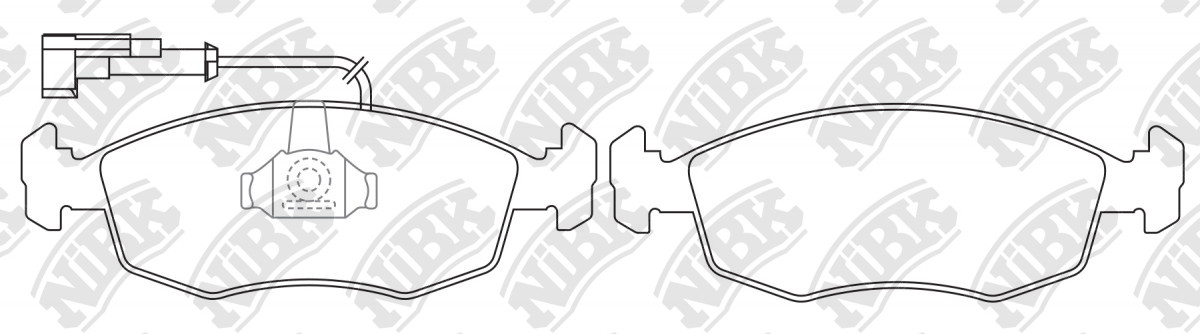

BRAKE PADS » PN0631W
Specification
Length-1
151.4
Width-1
52.5
Length-2
151.4
Width-2
52.5
Thickness-1
17.5
Thickness-2
17.5
Pcs In Set
4
Wire-Sensor
2
Notes
two sensor
Cross Reference
BENDIX EUR
573094B
FIAT
6 810 248 3AA
FIAT
6 810 248 3AB
FIAT
9947954
FIAT
9949125
FIAT
K68102483AA
FIAT
K68102483AB
FMSI
D1538-8747
FMSI
D1568-8777
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.99~10.00 | 1200 | E2000 | 178AXZ1A | PN0631WPN0268 | FN0592 | |||
| 06.99~10.00 | 1200 | E2000 | 178BXZ1A | PN0268PN0631W | FN0592 |
| 07.97~08.00 | 1200 | 178 B5.000 | RN1060V | PN0631WPN0268 | FN0592 | |||
| 09.00~ | 1200 | 188 A4.000 | 178DYA1A | PN0631W | ||||
| 09.01~ | 1200 | 188 A5.000 | 178DYE1AA | RN1060V | PN0631W | |||
| 07.97~08.01 | 1400 | 178 B2.000 | 178DXC1AAP | RN1060V | PN0631WPN0268 | FN0592 | ||
| 07.97~08.01 | 1400 | 178 B2.000 | 178DXC1AAT | RN1060V | PN0631WPN0268 | FN0592 | ||
| 07.97~08.00 | 1600 | 178 B3.000 | RN1060V | PN0631WPN0268 | FN0592 | |||
| 07.97~08.02 | 1600 | 178 B3.000 | 178DXC1AAT | RN1060V | PN0631W | FN0592 | ||
| 07.97~08.02 | 1600 | 178 B3.000 | 178DXD1AAP | RN1060V | PN0631W | FN0592 | ||
| 07.97~08.02 | 1600 | 178 C7.098 | 178DX1AAR | PN0631W | FN0592 | |||
| 07.97~08.02 | 1600 | 178 C7.098 | 178DXQ | PN0631W | FN0592 | |||
| 07.97~08.02 | 1600 | 178 C7.098 | 178DXR | PN0631W | FN0592 | |||
| 09.00~ | 1600 | 182 B6.000 | RN1060V | PN0631W | ||||
| 09.01~ | 1900 | 188 A2.000 | 178DYF1A11 | RN1060V | PN0631W | |||
| 09.00~ | 1900 | 223 A6.000 | 178DYD1A07 | RN1060V | PN0631W |
