NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2309V

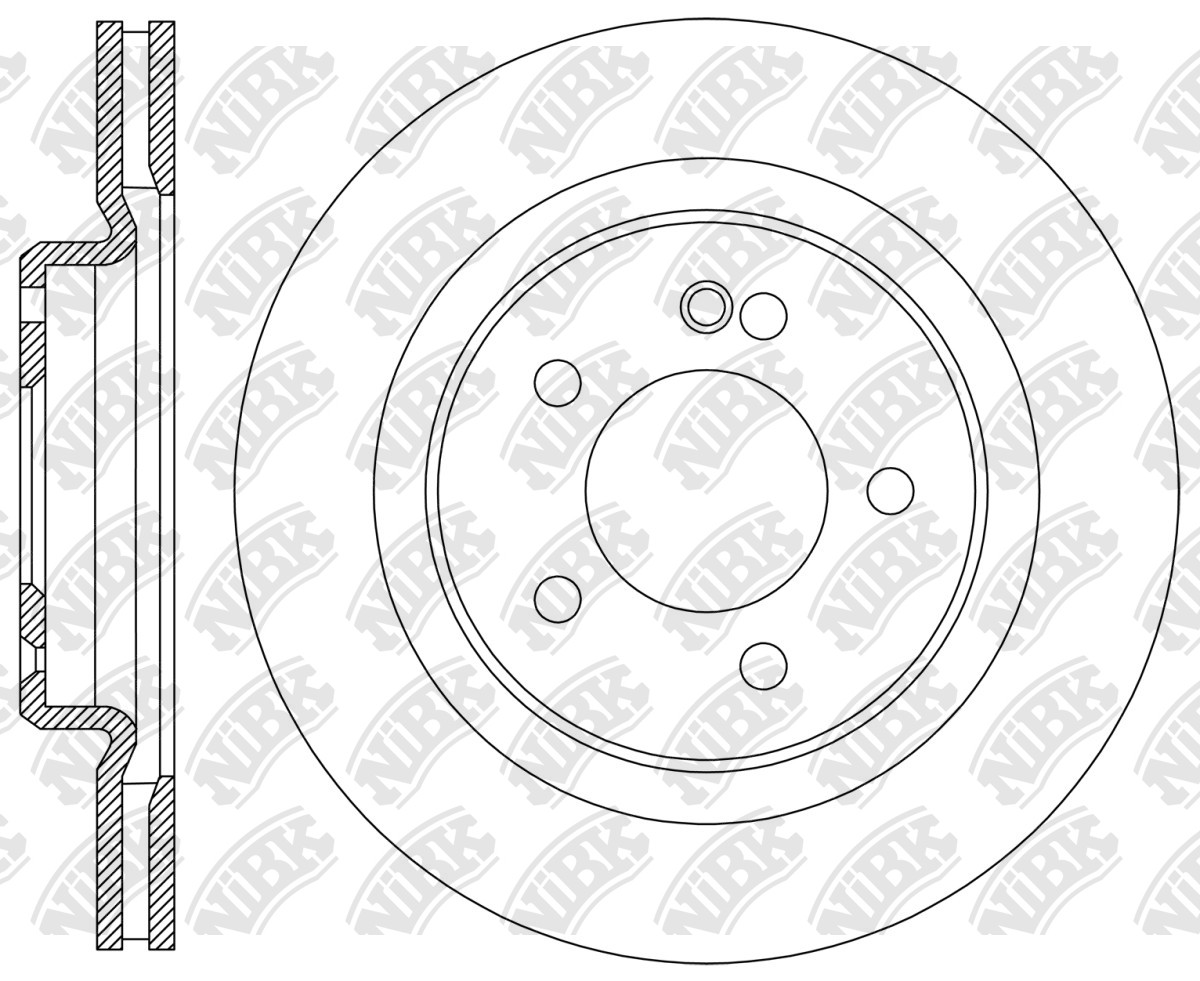

ROTOR DISC » RN2309V

Specification

Type

Vented

Outter Ø

296

Num. of holes

5

Hole Ø:

13

Disc Thickness (Max)

25

Disc Thickness (Min)

23

Height

48.5

Centering Diameter

62

Pitch Circle Ø

114.3

Drum Ø:

141.8

Front/Rear

Front

Structure Material

G3000

Cross Reference

GEELY

4048046700

GEELY

4048102500

GEELY

6600005651

GEELY

8891795662

HI-Q

SD8464

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

BELGEE » X50

07.23~

1500

JLH-3G15TD

SX11

RN2309V

PN8004

RN2310

PN8003

GEELY » Coolray

08.18~08.21	1500	3G15TD	SX11LA	RN2309V	PN8004	RN2310	PN8003
08.22~	1500	BHE15-EFZ	SX11-A3	RN2309V	PN8056		PN8057
08.18~	1500	JLH-3G15TD	SX11	RN2309V	PN8004	RN2310	PN8003
