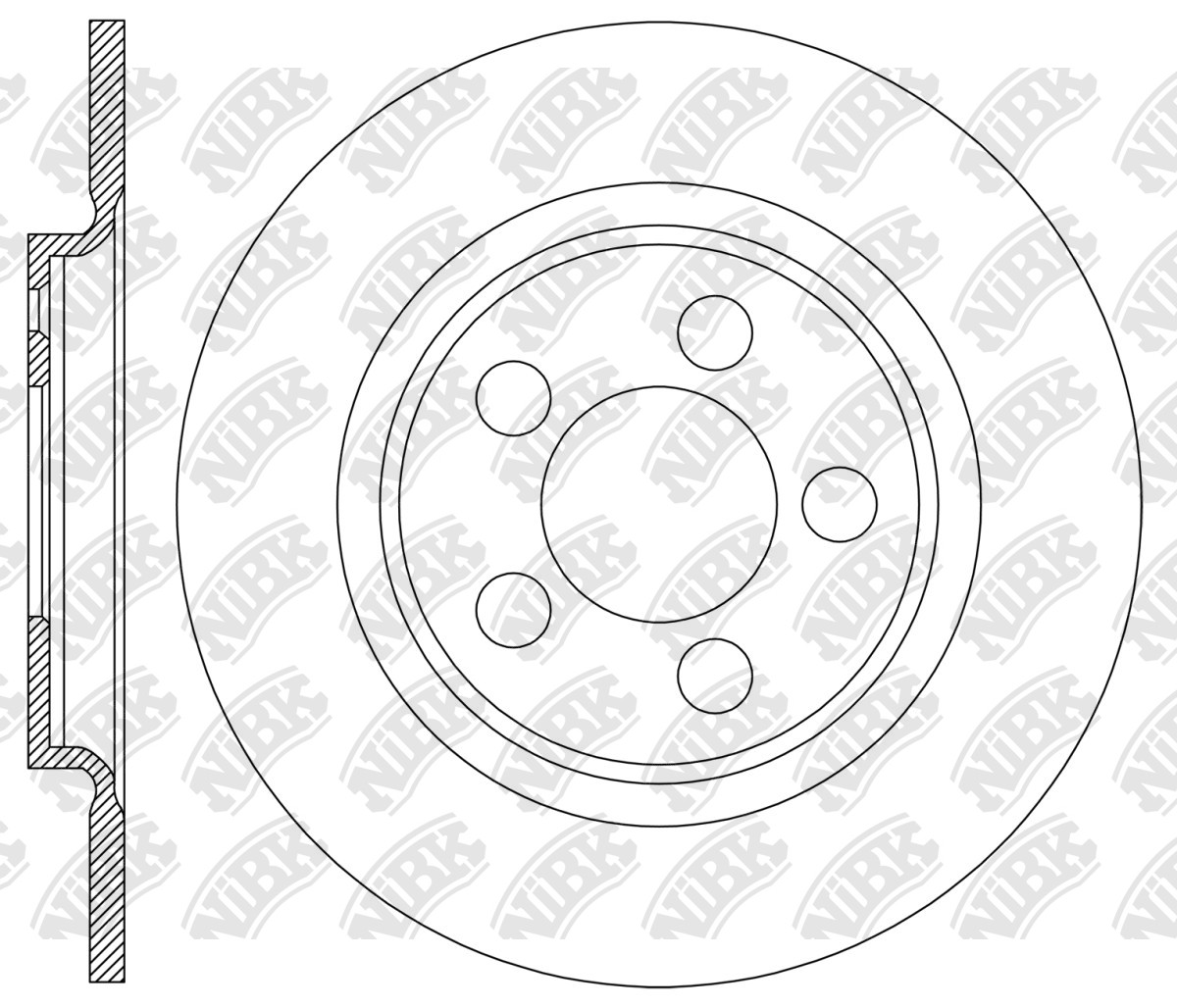

ROTOR DISC » RN2300

Specification

Type
Solid
Outter Ø
328
Num. of holes
5
Hole Ø:
14.5
Disc Thickness (Max)
12
Disc Thickness (Min)
10.4
Height
33.2
Centering Diameter
72.5
Pitch Circle Ø
127
Drum Ø:
165.5
Front/Rear
Rear
Structure Material
G3000

Cross Reference

CHRYSLER
04779 713AA
CHRYSLER
04779 713AB
CHRYSLER
2AMV9 713AA
CHRYSLER
68227 800AA
CHRYSLER
68227 800AB
CHRYSLER
K04779713AA
CHRYSLER
K04779713AB
CHRYSLER
K68227800AA
CHRYSLER
K68227800AB
VAG
7B0 615 601 C
VAG
7B0 615 601 D
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.11~08.16 3600 ERB RTY_53 RN2299V PN53003 RN2300 PN53005
01.08~08.20 2400 ED3 JCBS49 RN2299V PN53003 RN2300 PN53005
09.10~10.19 3600 ERB JC RN1920VRN2299V PN0496PN53003 RN1919RN2300 PN53009PN53005PN53002

Exemption from liability: the catalog data is advisory and can be used for reference only
