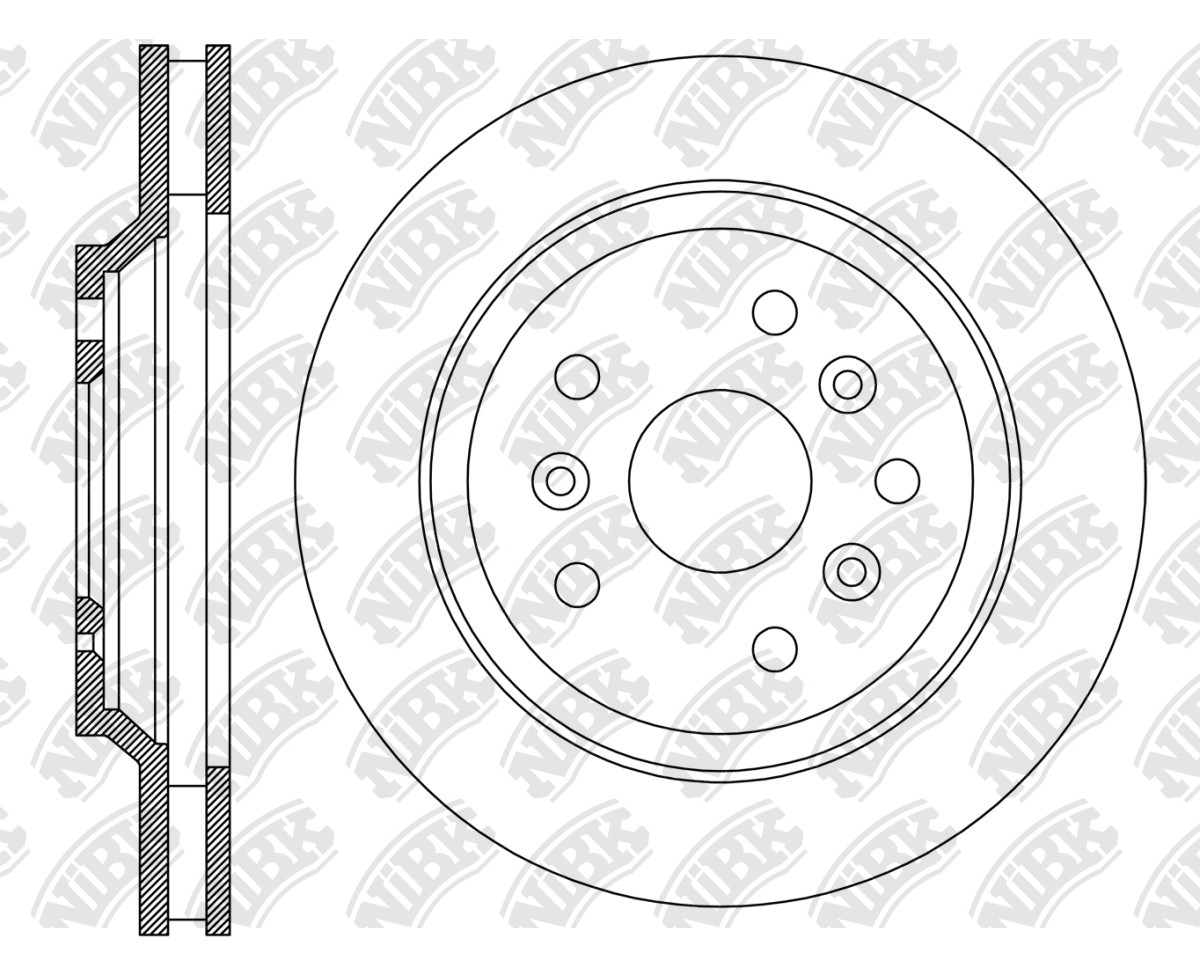

ROTOR DISC » RN2221V

Specification

Type
Vented
Disc Thickness (Max)
30
Num. of holes
5
Height
52
Centering Diameter
70.6
Front/Rear
Front
Pitch Circle Ø
115
Outter Ø
303
Drum Ø:
149
Disc Thickness (Min)
28.6
Structure Material
G3000

Cross Reference

BENDIX
PRT5654
GM
15251335
GM
20879454
GM
23127613
GM
25862792
GM
25955931
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.16~ 3600 LFX 1WC19 RN2221V
01.06~01.08 5300 LS4 1WL27 RN2221V PN0582 PN0175

Exemption from liability: the catalog data is advisory and can be used for reference only
