NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2212V

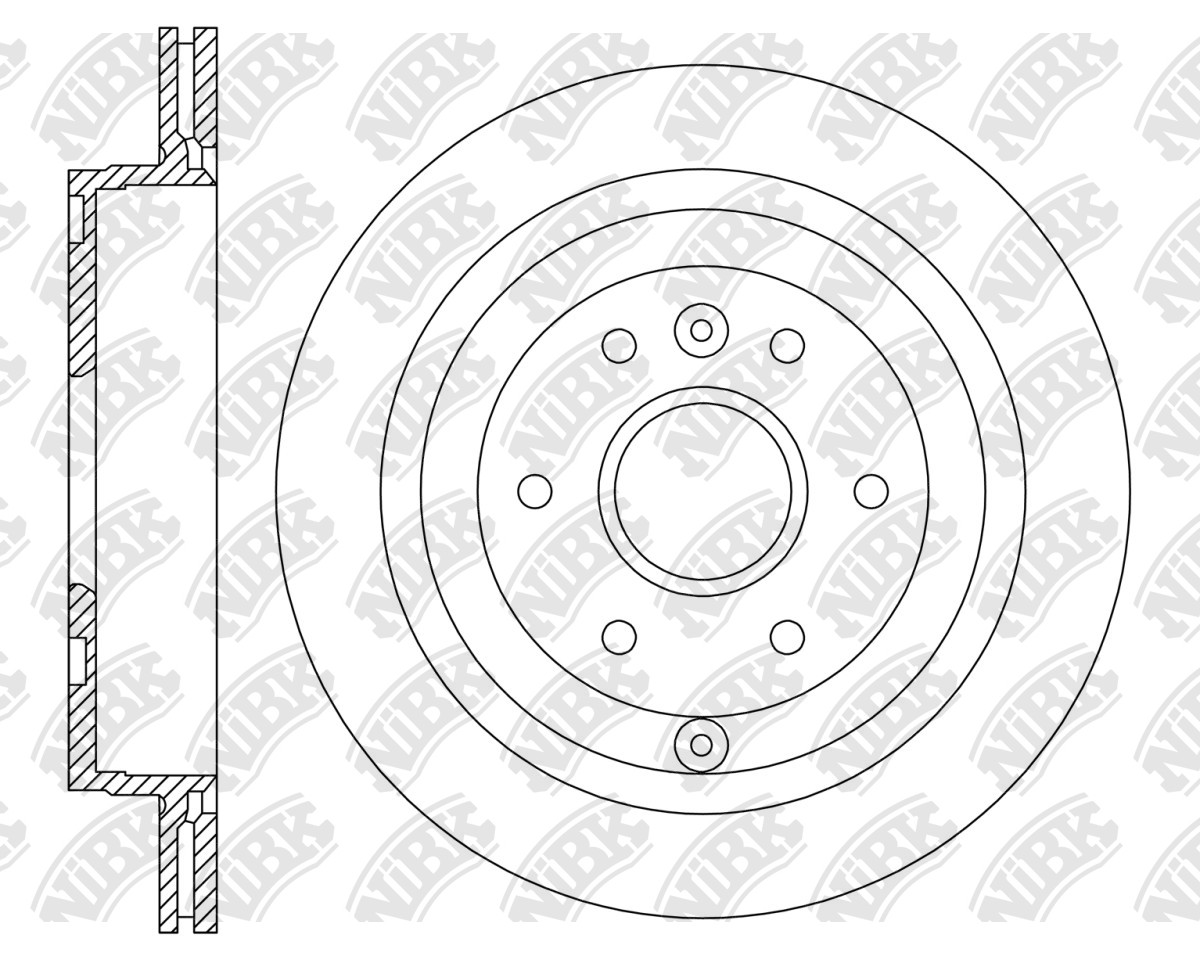

ROTOR DISC » RN2212V

Specification

Type

Vented

Outter Ø

331

Num. of holes

6

Disc Thickness (Max)

20

Disc Thickness (Min)

18.4

Height

53.4

Centering Diameter

75.6

Pitch Circle Ø

132

Drum Ø:

177

Structure Material

G3000

Front/Rear

Rear

Cross Reference

GM

10391043

GM

19235233

GM

22768973

GM

25858784

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

BUICK (GM) » Enclave

09.08~03.17	3600	LLT		RN2211V	PN0517	RN2212V	PN4802
04.07~08.08	3600	LY7		RN2211V	PN0517	RN2212V	PN4802

CHEVROLET (GM) » Traverse

10.08~07.17	3600	LLT	CR14526	RN2211V	PN0517	RN2212V	PN4802	FN0788
10.08~07.17	3600	LLT	CV14526	RN2211V	PN0517	RN2212V	PN4802	FN0788

GMC » Acadia

08.08~03.17

3600

LLT

TV14526

RN2211V

PN0517

RN2212V

PN4802

FN0788
