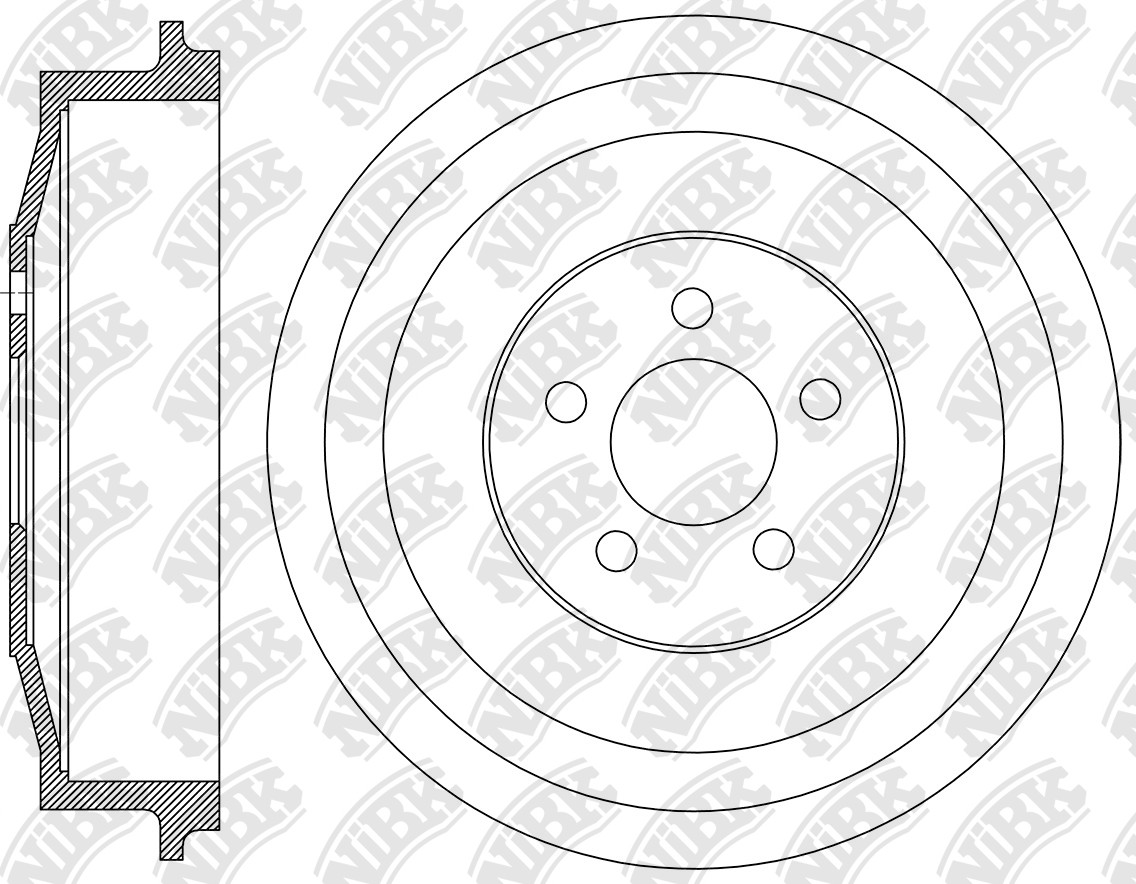

DRUM BRAKE » DN1637

Specification

Outter Ø
279
Num. of holes
5
Hole Ø
14.3
Centering Diameter
57.4
Height
69.4
Pitch Circle Ø
100
Drum Ø
228.7
Structure Material
G3000

Cross Reference

BENDIX
PDR0794
CHRYSLER
05273209AA
CHRYSLER
5273209AA
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.03~12.07 1600 EJD PTCP44 RN1156V PN0154 DN1637 FN33002
04.00~12.10 2000 ECC PT RN1156V PN0154 DN1637 PN0149FN33002 FN11154
06.00~03.08 2400 EDZ PT RN1156V PN0154 DN1637 PN0149FN33002 FN11154

Exemption from liability: the catalog data is advisory and can be used for reference only
