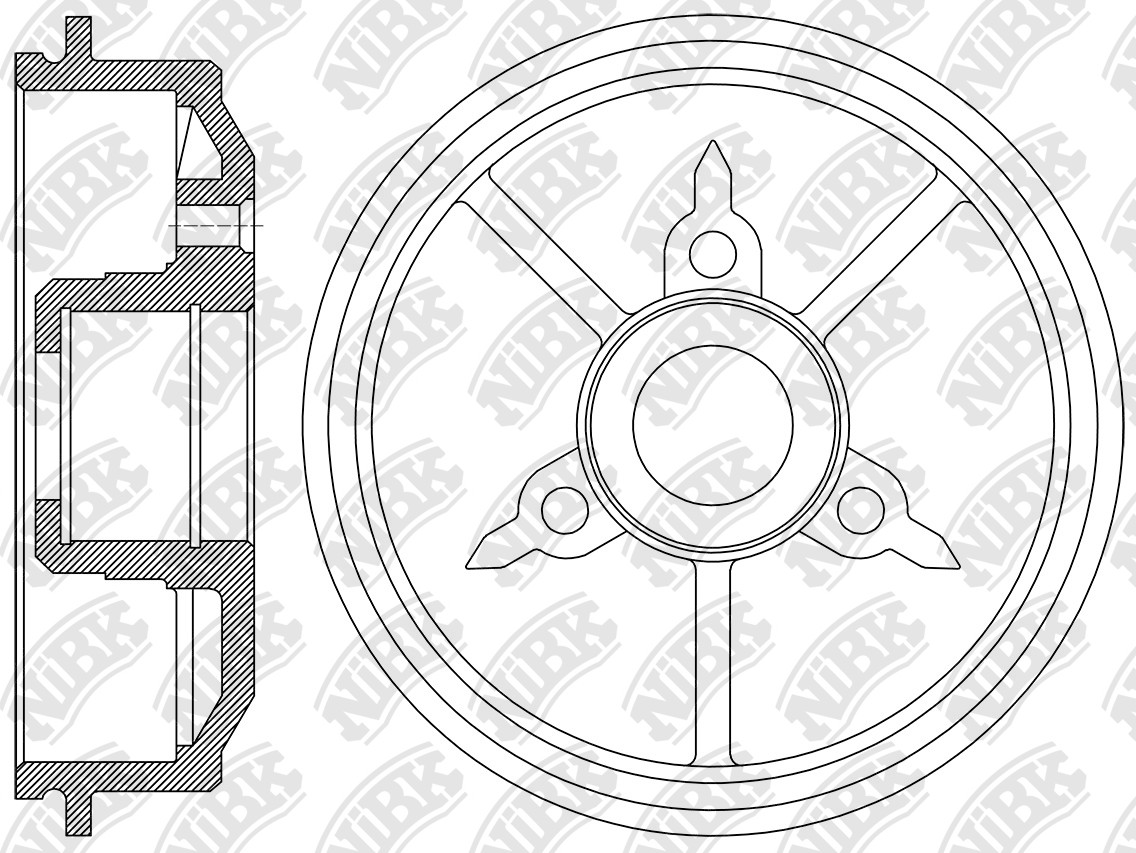

DRUM BRAKE » DN1574

DN1574

Specification

Outter Ø
201
Num. of holes
3
Centering Diameter
35.5-55.9
Height
58
Pitch Circle Ø
98
Drum Ø
165
Structure Material
G3000
Hole Ø
M12x1.25
Notes
w/o Wheel Bearing

Variation

DN1574H[NiBK]

Cross Reference

Peugeot / Citroen
4247 33
Peugeot / Citroen
4247 42
Peugeot / Citroen
4247 43
Peugeot / Citroen
95619206
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CITROEN   »   Saxo

02.96~04.04 1000 TU9M S3CD PN0250W DN1574 FN0510

PEUGEOT   »   106

09.91~05.96 1000 TU9M 3DR HB PN0240PN0250W DN1574 FN0510FN0523
09.91~05.96 1000 TU9M 5DR HB PN0240PN0250W DN1574 FN0510FN0523
09.91~05.96 1100 TU1# Hatchback PN0250WPN0240 DN1574 FN0510FN0523
