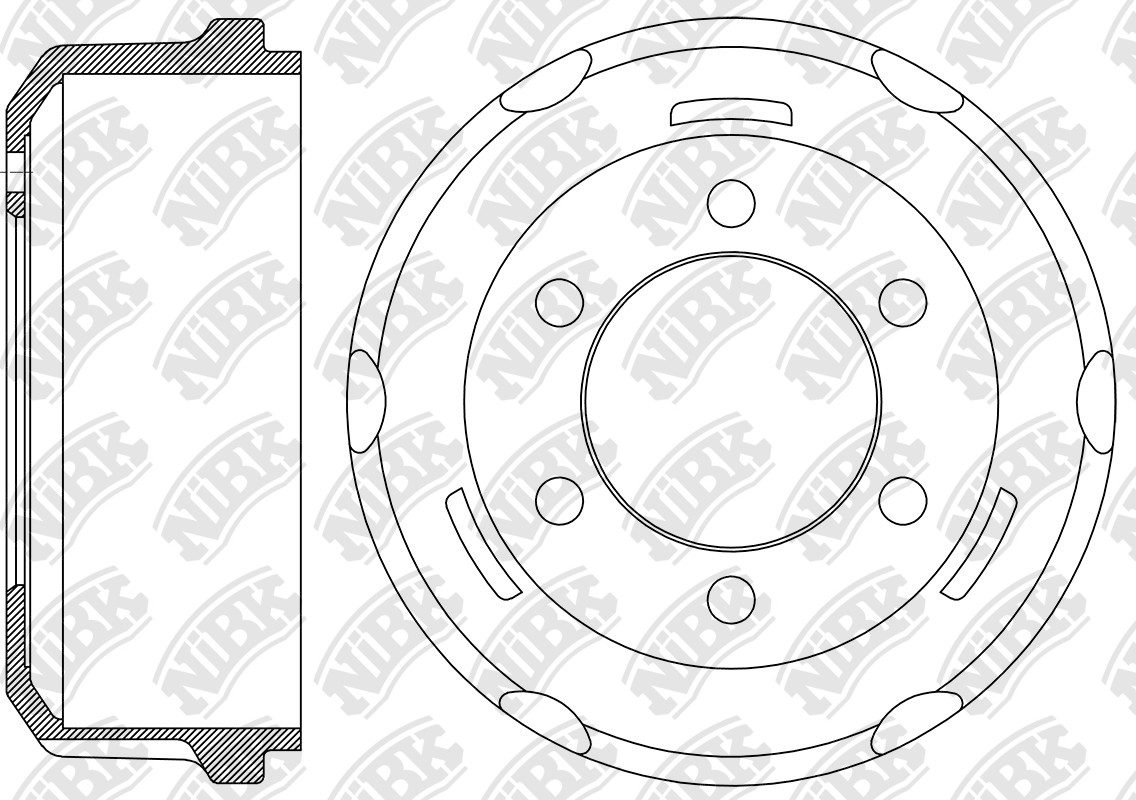

DRUM BRAKE » DN1512

DN1512

Specification

Outter Ø
374
Num. of holes
6
Centering Diameter
179
Height
142
Pitch Circle Ø
222.25
Drum Ø
320
Structure Material
G3000
Hole Ø
19.3

Cross Reference

HYUNDAI
52761-5K501
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   HD72

01.04~06.11 3900 D4DC11 FGA1 DN1512 FN0679 DN1512 FN0679 FN6600

HYUNDAI   »   HD75

01.09~ 3900 D4GA CARGO HIGH DN1512 FN0679 DN1512 FN0679
