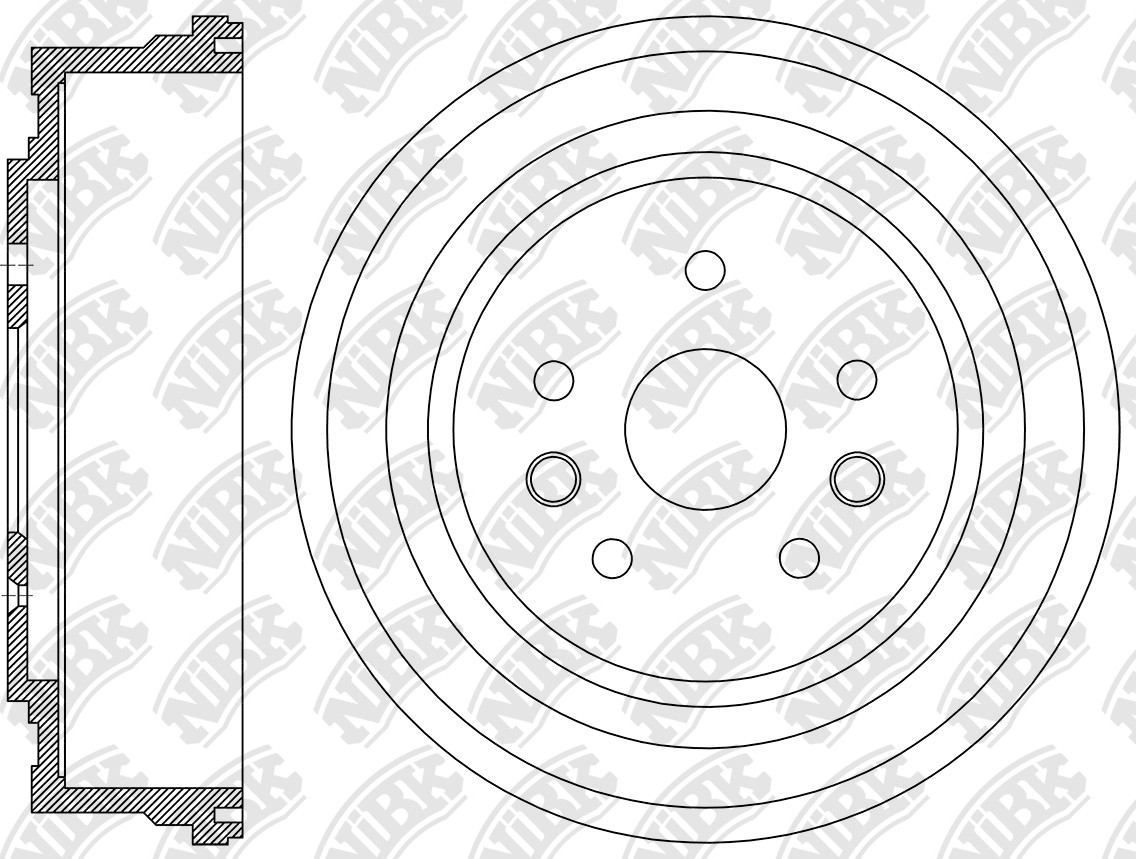

DRUM BRAKE » DN1457

Specification

Outter Ø
297
Num. of holes
5
Hole Ø
14.5
Centering Diameter
75
Height
84.5
Pitch Circle Ø
120
Drum Ø
260
Structure Material
G3000

Cross Reference

HYUNDAI
58411-4F100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.04~ 2600 D4BB HEH75B555 RN1951V PN0600 DN1489DN1457 FN0814
01.04~ 2600 D4BB TRUCK VTN RN1951V PN0600 DN1489DN1457 FN0814

Exemption from liability: the catalog data is advisory and can be used for reference only
