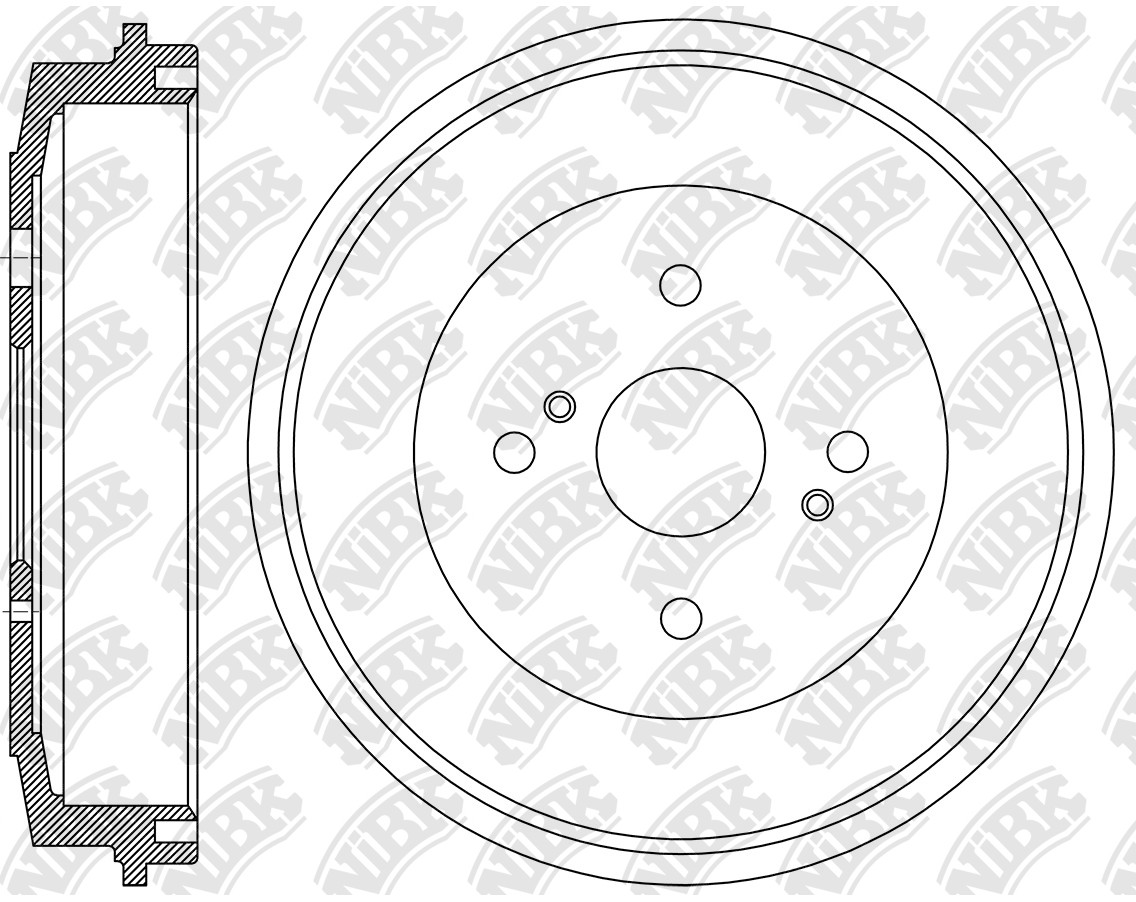

DRUM BRAKE » DN1433

DN1433

Specification

Outter Ø
220
Num. of holes
4
Hole Ø
14.8
Centering Diameter
55
Height
46.8
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

DAIHATSU
42431-B1020
DAIHATSU
42431-B1021
SUBARU
42431-B1020
SUBARU
42431-B1021
TOYOTA
42431-B1020
TOYOTA
42431-B1021
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

DAIHATSU   »   Boon

04.16~ 1000 1KR-FE M700S RN1462V PN9443 DN1433 FN0046

DAIHATSU   »   Materia

09.06~08.09 1500 3SZ-VE M402 LHD GCC RN1954V PN5562 DN1433 FN2397

DAIHATSU   »   Sirion

10.04~06.07 1300 K3-VE M301L RN1481V PN6492 DN1433 FN2397
06.07~01.13 1300 K3-VE M301L RN1954V PN6492PN5544 DN1433 FN2397
10.04~10.11 1300 K3-VE M301S RN1481VRN1462V PN6492 DN1433 FN2397
06.07~01.13 1500 3SZ-VE M303 RN1954V PN5544 DN1433 FN2397

DAIHATSU   »   Thor

11.16~ 1000 1KR-## M900S PN5562 DN1433 FN0046

SUBARU   »   DEX

07.08~06.12 1300 K3-VE M401F PN9443 DN1433 FN2397

SUBARU   »   Justy

11.16~ 1000 1KR-## M900F PN5562 DN1433 FN0046

SUBARU   »   Lucra

04.10~10.14 660 KF-#E L455F PN6428PN6492 DN1433

SUBARU   »   Pleo

04.10~03.18 660 KF-VE L275B RN1481V PN6428PN6492 DN1433 FN0027FN2397

SUBARU   »   Stella

05.11~ 660 KF LA100F PN6492PN6428 DN1433 FN0042

TOYOTA   »   bB

01.06~07.16 1300 K3-VE QNC20 RN1462V PN9443 DN1433 FN2397
01.06~07.16 1500 3SZ-VE QNC21 RN1462V PN9443 DN1433 FN2397

TOYOTA   »   Passo

04.16~ 1000 1KR-FE M700A RN1462V PN9443 DN1433 FN0046

TOYOTA   »   Pixis Joy

08.16~06.20 660 KF LA250A RN1481V PN1805 DN1433 FN0046

TOYOTA   »   Pixis Mega

08.15~08.22 660 KFVE LA700A RN2618VRN1481V PN6492PN1805 DN1433 FN0046FN2397

TOYOTA   »   Pixis Space

09.11~12.16 660 KF-DET L575A RN1481VRN1836 PN6492PN6428 DN1433 FN2397FN0027
09.11~01.17 660 KF-VE L575A RN1836RN1481V PN6428PN6492 DN1433 FN2397FN0027

TOYOTA   »   Tank/Roomy

11.16~ 1000 1KR-VET M900A PN5562 DN1433 FN0046
