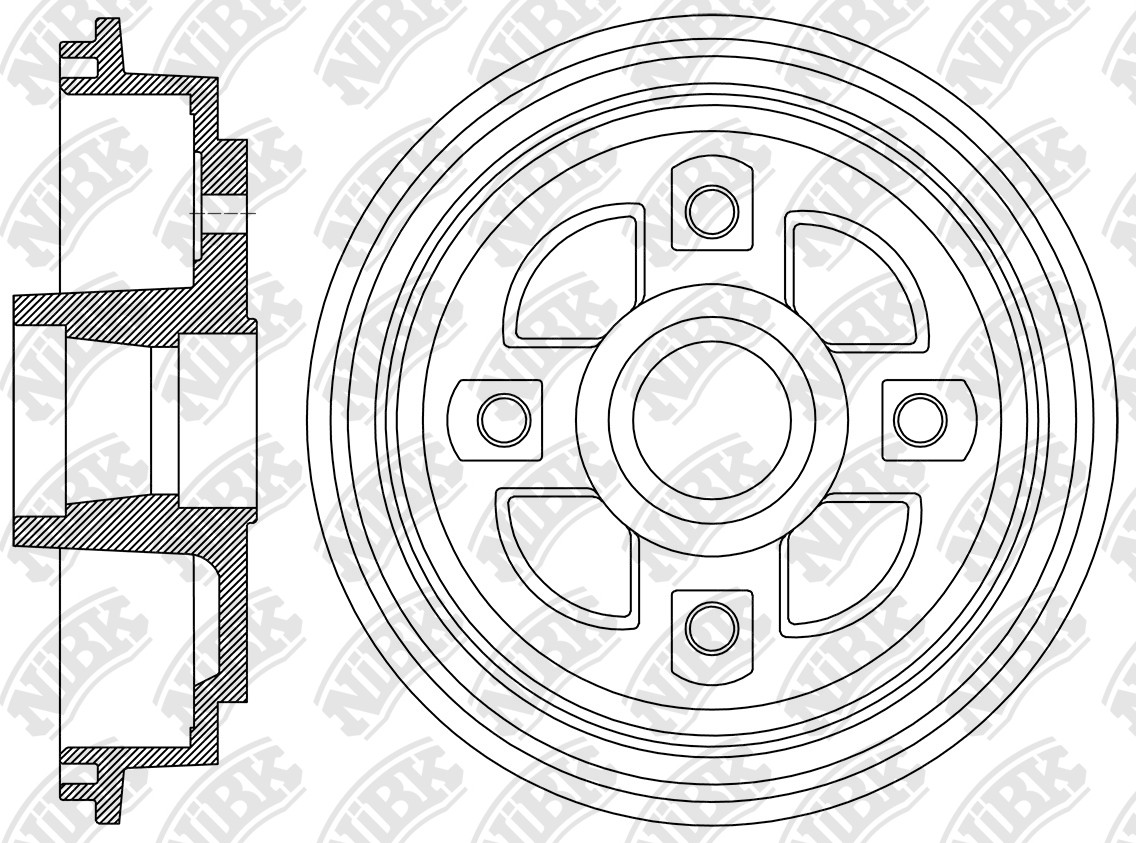

DRUM BRAKE » DN1413

Specification

Outter Ø
222
Num. of holes
4
Centering Diameter
51.9
Height
66.2
Drum Ø
180
Structure Material
G3000
Pitch Circle Ø
114.3

Cross Reference

GM
96060541
SUZUKI
43511-60B00
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.89~09.01 1000 LP2 SF310 PN9169 DN1362DN1413DN1415 FN9933
01.89~03.05 1000 G10A SF310 PN9169 DN1415DN1419DN1413 FN9933FN0032

Exemption from liability: the catalog data is advisory and can be used for reference only
