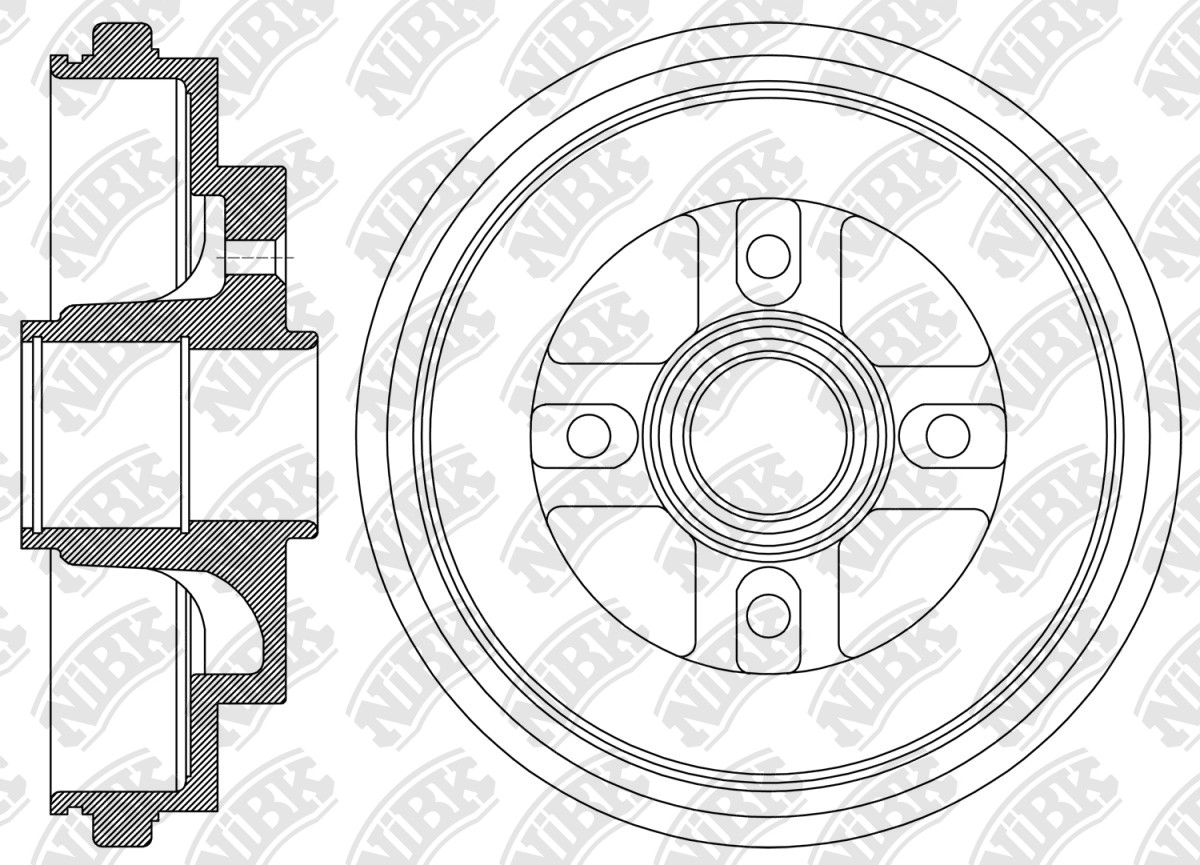

DRUM BRAKE » DN1373

DN1373

Specification

Outter Ø
232
Num. of holes
4
Centering Diameter
51.9-54
Height
84
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Hole Ø
M12x1.5

Cross Reference

SUZUKI
43511-86G50
SUZUKI
43511-86G50-000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUZUKI   »   Ignis

01.03~01.08 1300 M13A HX51 RN1523V PN9807 DN1373DN1412 FN9977
06.03~01.08 1300 Z13DT HX91S 5DR HB LHD RN1523V PN9807 DN1373 FN9977
01.03~01.08 1500 M15A MHX81 RN1523V PN9807 DN1412DN1373 FN9977
