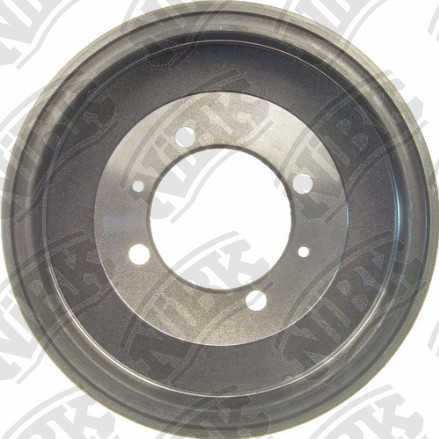

DRUM BRAKE » DN1349

Specification

Outter Ø
269
Num. of holes
4
Hole Ø
12.9
Centering Diameter
89.8
Height
61.5
Pitch Circle Ø
114.3
Drum Ø
228.6
Structure Material
G3000

Cross Reference

MITSUBISHI
MB587937
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.93~09.97 2000 4D68 N38W RN1011VRN1106V PN3271 DN1349 PN3174FN6687
06.92~09.97 2000 4D68 N48W PN3271 DN1349 FN6687PN3174
03.91~09.97 2000 4G63 N33W RN1106VRN1011V PN3271 RN1158DN1349 FN6687PN3174 FN0808
03.91~09.97 2000 4G63# N43W RN1011VRN1106V PN3271PN3233 RN1158DN1349RN1242 PN3174FN6687 FN6704
08.96~05.00 1800 4G93 EC1A RN1011V PN3271 RN1158DN1349 FN6687PN3174
05.00~12.05 2000 4G94 EC7A RN1237V PN3271 RN1158DN1349 FN6687PN3174
08.92~12.02 1800 6G74 CD4A RN1011V PN3271 DN1349 FN6687
05.00~08.02 2000 4G94 EC7W RN1011V PN3271 DN1349 FN6687
04.92~05.00 1800 4G93 CD5W PN3271 DN1349 FN6687PN3110
04.92~08.02 2000 4D68-T CD8W PN3271 DN1349 FN6687
06.91~05.99 1800 4G93 N21W RN1011V PN3271 DN1349 PN3174FN6687
01.91~12.97 1800 4D65-T N35W DN1349
09.91~10.98 1800 4G93 N31W RN1011V PN3271 DN1349 FN6687
05.91~12.00 1800 4G93 N41W DN1349
05.91~12.00 2000 4D68-T N38W DN1349
05.91~12.00 2000 4G63 N33W DN1349
05.91~12.00 2000 4G63 N43W DN1349
05.91~12.00 2400 4G64 N34W DN1349

Exemption from liability: the catalog data is advisory and can be used for reference only
