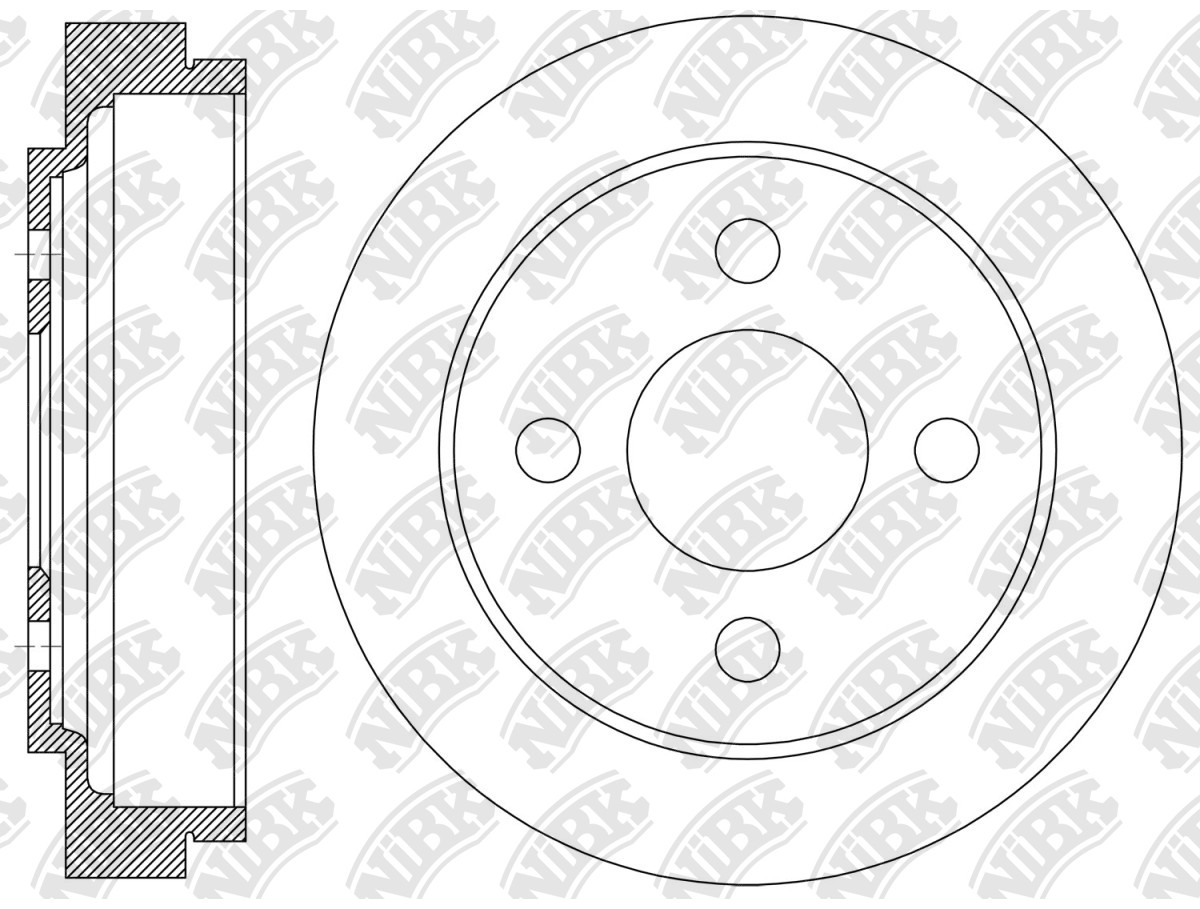

DRUM BRAKE » DN1318

Specification

Outter Ø
216
Num. of holes
4
Centering Diameter
61
Height
53
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

NISSAN
43206-5F011
NISSAN
43206-5F012
NISSAN
43206-5F013
NISSAN
43206-5F014
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
08.92~12.02 1000 CG10DE K11E RN1043RN1233V PN2191 DN1318 PN2210FN1251
08.92~07.00 1300 CG13DE K11E RN1043 PN2191 DN1318 FN1251PN2210
07.00~12.02 1300 CGA3DE K11E RN1233VRN1043 PN2191 DN1318 FN1251
02.98~12.02 1500 TD15 K11E RN1233VRN1043 PN2191 DN1318 FN1251

Exemption from liability: the catalog data is advisory and can be used for reference only
