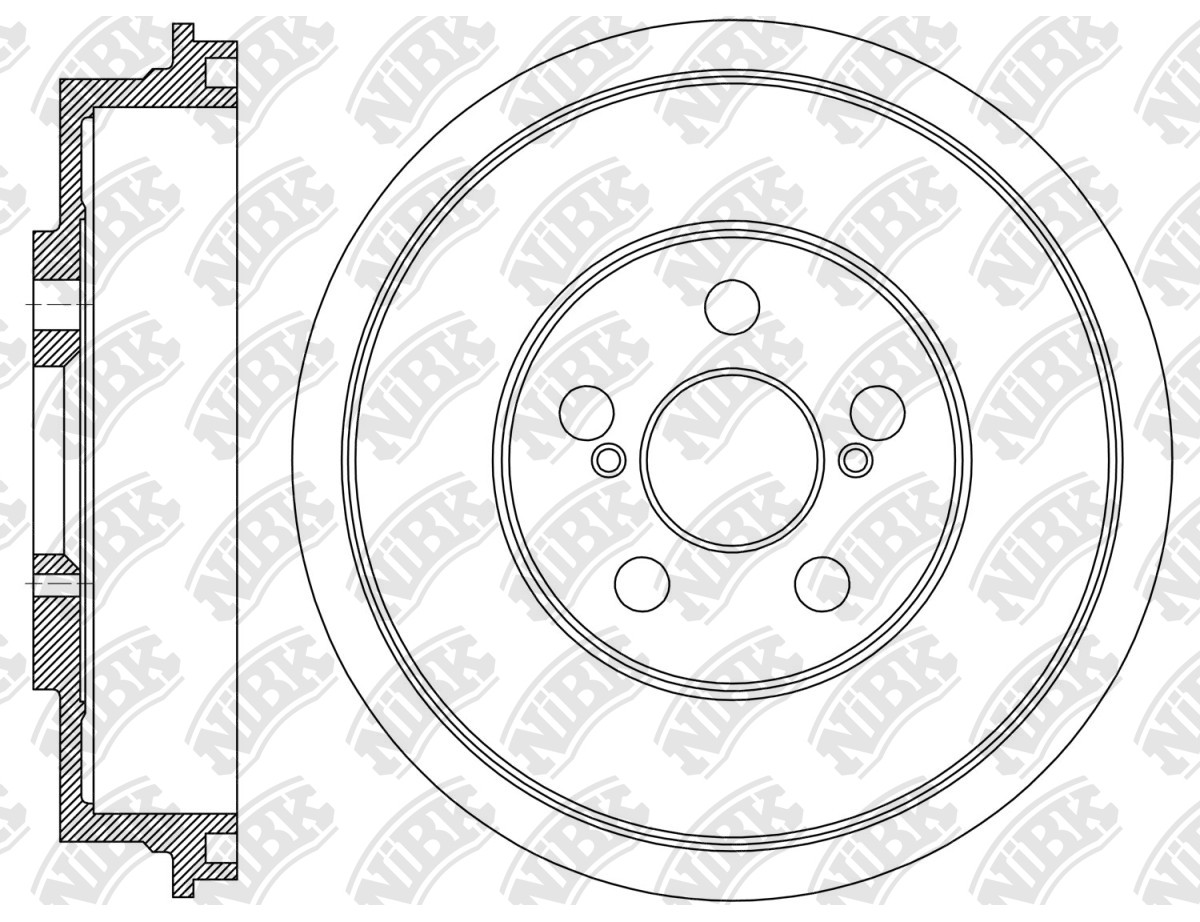

DRUM BRAKE » DN1272

DN1272

Specification

Outter Ø
284
Num. of holes
5
Hole Ø
16.2
Centering Diameter
55
Height
65.1
Pitch Circle Ø
100
Drum Ø
228.6
Structure Material
G3000

Cross Reference

TOYOTA
42431-52110
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Ist

07.07~04.16 1500 1NZ-FE NCP110 RN1576V PN1524 DN1272 FN2389
07.07~08.10 1800 2ZR-FE ZSP110 RN1576V PN1524 DN1272 FN2389

TOYOTA   »   Scion XD

06.07~07.14 1800 2ZR-FE ZSP110L RN1576V PN1524 DN1272 FN2389
