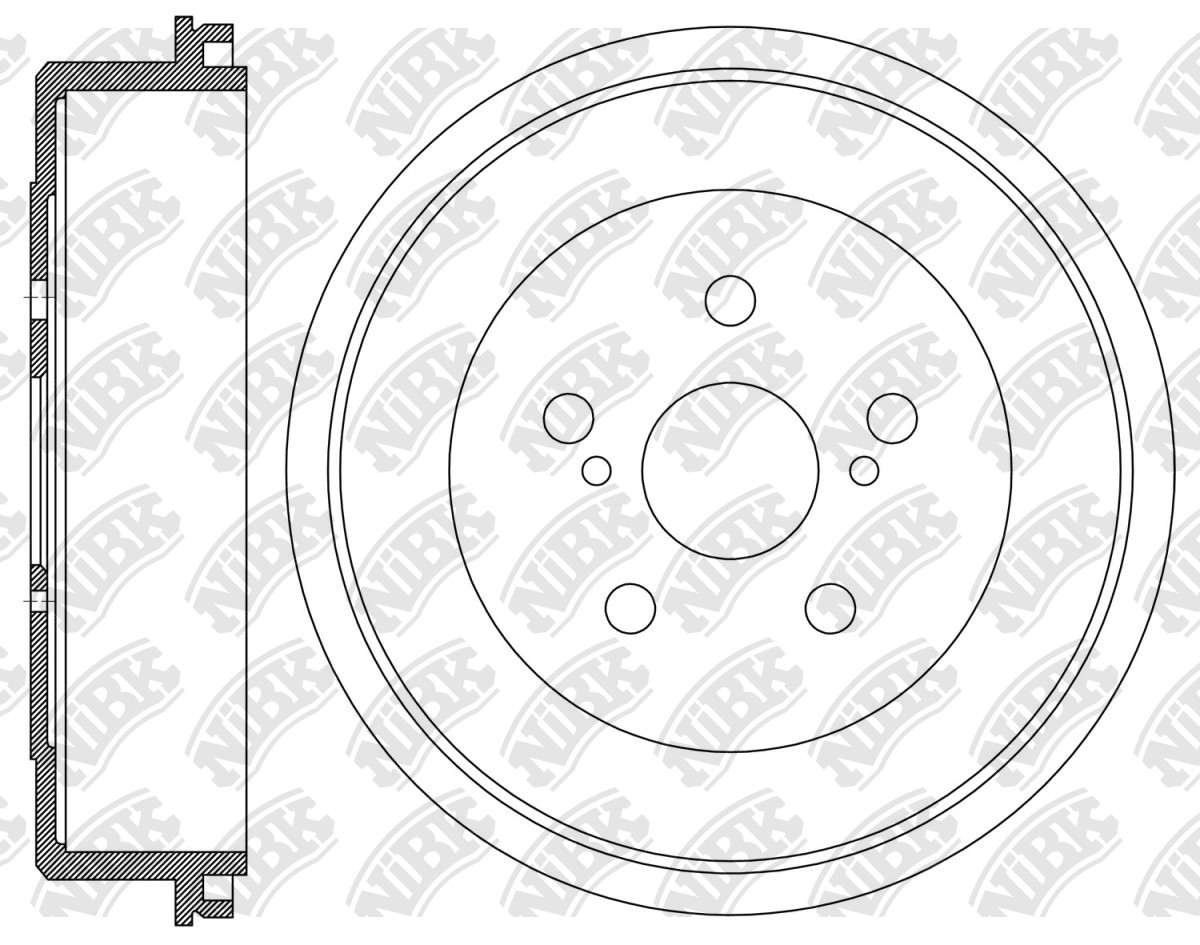

DRUM BRAKE » DN1256
Specification
Outter Ø
303
Num. of holes
5
Hole Ø
14.5
Centering Diameter
60.1
Height
71.7
Pitch Circle Ø
114.3
Drum Ø
255
Structure Material
G3000
Cross Reference
TOYOTA
42431-28040
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.92~12.99 | 2200 | 3C-T | CXR10G | RN1532V | PN1273 | DN1256 | FN2252FN2335 | |
| 01.92~12.99 | 2200 | 3C-T | CXR20G | RN1532VRN1461VRN1070V | PN1404PN1217PN1273 | DN1256RN1099V | FN2252PN1274FN2335 | FN0567 |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR10G | RN1070VRN1532V | PN1404PN1273PN1217 | DN1256RN1099V | PN1274FN2335FN2252 | |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR20G | RN1070VRN1461VRN1532V | PN1273PN1404PN1217 | DN1256RN1099V | FN2335PN1274FN2252 | FN0567 |
| 06.99~08.07 | 1800 | 7K-E | KM85 | RN1532V | PN1405PN1273 | DN1256 | FN2335 | |
| 06.99~08.04 | 2200 | 3C-E | CM80 | RN1532V | PN1405PN1273 | DN1256 | FN2335 |
| 01.96~01.07 | 1800 | 7K-E | KR52V | RN1532V | PN1405 | DN1256 | FN2335 | |
| 10.96~08.07 | 2000 | 3S-FE | SR50G | RN1532VRN1070V | PN1273PN1405PN1404 | DN1256 | FN2335 |
| 01.90~12.99 | 2400 | 2TZ-FE | TCR10L | RN1532VRN1070VRN1461V | PN1217PN1273 | DN1256RN1099V | FN2252FN2335PN1274 | FN0567 |
| 01.90~12.99 | 2400 | 2TZ-FE | TCR20L | RN1532VRN1461VRN1070V | PN1404PN1273PN1217 | RN1099VDN1256 | FN2335PN1274FN2252 | FN0567 |
| 01.90~04.94 | 2400 | 2TZ-FE | TCR20R | RN1070V | PN1217PN1404PN1273 | DN1256 | FN2335PN1274FN2252 | FN0567 |
| 01.90~12.99 | 2400 | 2TZ-FZE | TCR10L | RN1070V | PN1404PN1273 | DN1256 | FN2335PN1274FN2252 | FN0567 |
