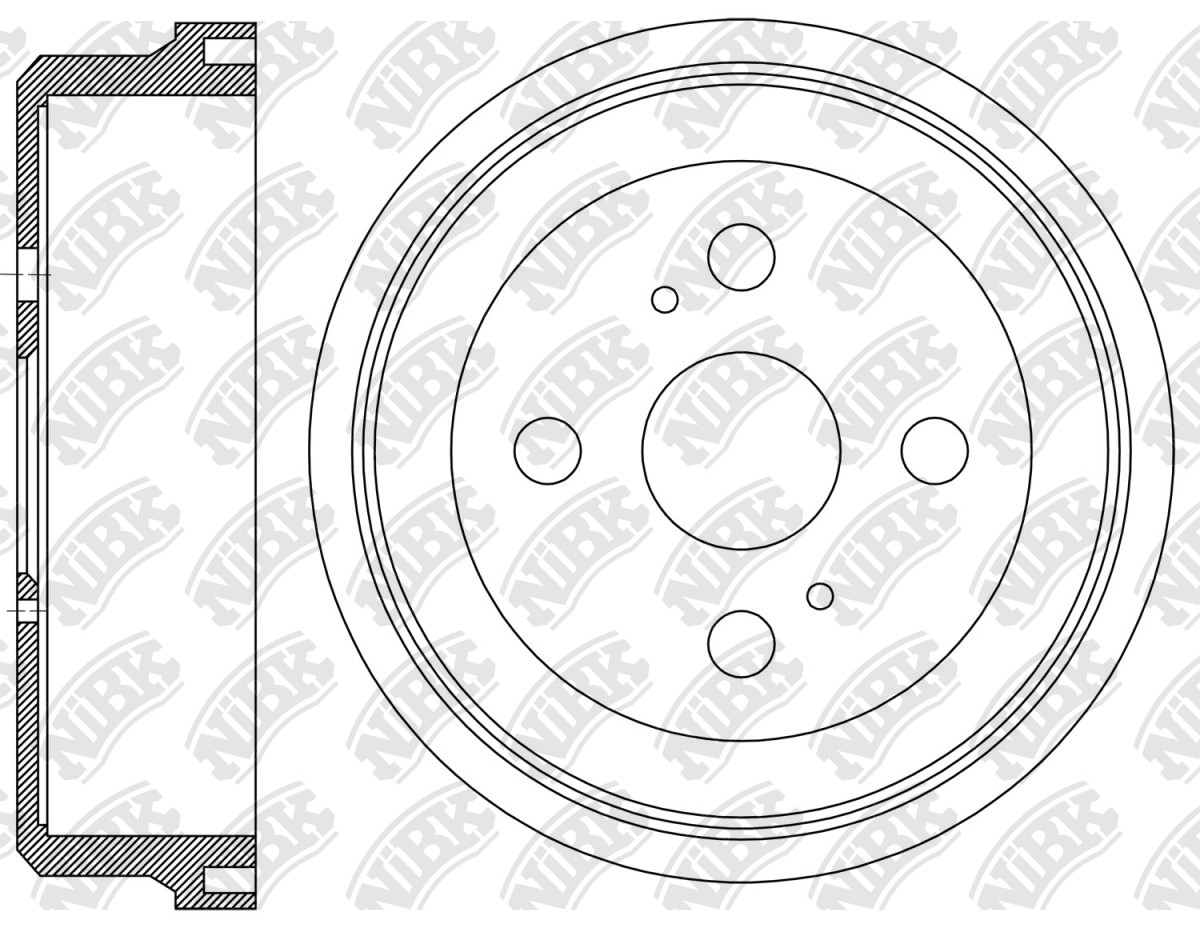

DRUM BRAKE » DN1242

DN1242

Specification

Outter Ø
242
Num. of holes
4
Hole Ø
14.5
Centering Diameter
60
Height
62.5
Pitch Circle Ø
114.3
Drum Ø
200
Structure Material
G3000

Cross Reference

TOYOTA
42431-12020
TOYOTA
42431-12050
TOYOTA
42431-12110
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Corolla

01.80~12.87 1300 4K-U KE70E PN1134 DN1242 FN2313

TOYOTA   »   Sprinter Trueno

05.85~05.87 1500 3A-U AE85 PN1081 DN1242 FN2313
