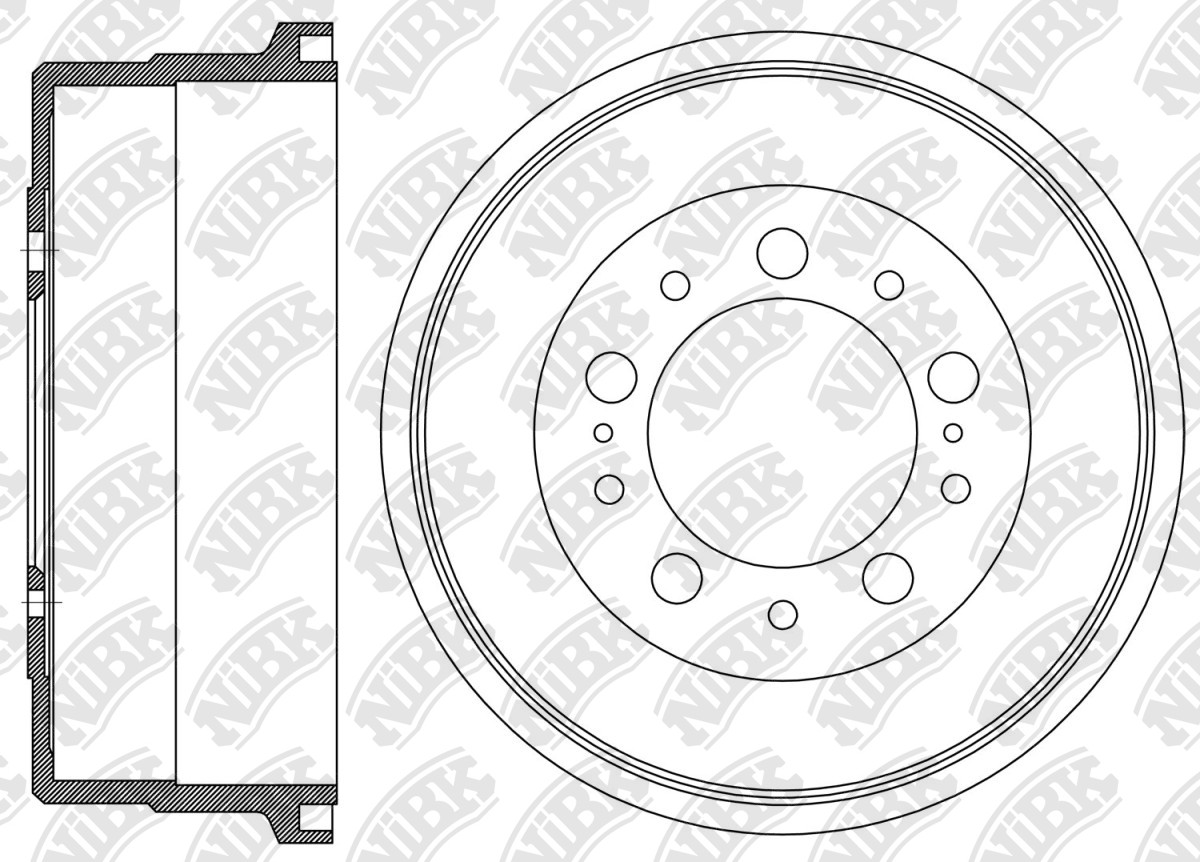

DRUM BRAKE » DN1224
Specification
Outter Ø
345
Num. of holes
6
Hole Ø
16.7
Centering Diameter
110
Height
131.6
Pitch Circle Ø
150
Drum Ø
295
Structure Material
G3000
Cross Reference
TOYOTA
42431-60210
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.98~09.07 | 4200 | 1HD-FTE | HDJ100L | RN1224V | PN1411 | RN1215VDN1224 | FN1179FN2280PN1412 | FN8905 |
| 01.98~08.02 | 4200 | 1HD-T | HDJ100R | RN1224V | PN1411 | RN1215VDN1224 | FN1179PN1412FN2280 | FN8905 |
| 01.98~09.07 | 4500 | 1FZ-FE | FZJ100 | RN1224V | PN1411 | RN1215VDN1224 | PN1412FN2280FN1179 | FN8905 |
| 01.98~09.07 | 4500 | 1FZ-FE | FZJ105L | RN1604V | PN1411 | DN1224RN1607V | FN1179FN2280PN1243 | FN8905 |
| 01.98~09.07 | 4700 | 2UZ-FE | UZJ100L | RN1224V | PN1411 | RN1215VDN1224 | PN1412FN1179FN2280 | FN8905 |
