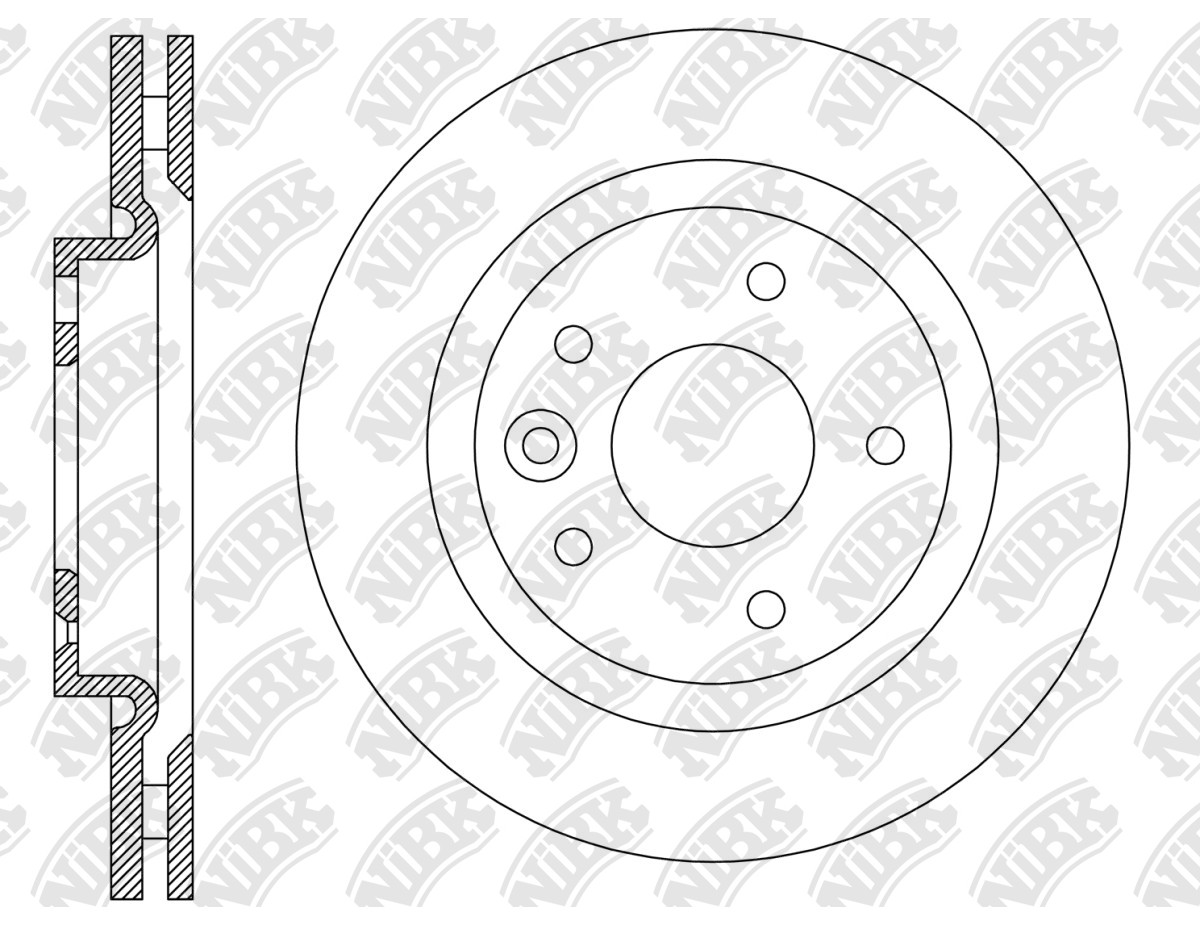

ROTOR DISC » RN2177V

Specification

Type
Vented
Outter Ø
325
Num. of holes
5
Disc Thickness (Max)
30
Disc Thickness (Min)
28
Height
48
Centering Diameter
63.5
Pitch Circle Ø
108
Drum Ø:
145
Structure Material
G3000
Hole Ø:
15.8
Front/Rear
Front

Cross Reference

JAGUAR
T4A2342
JAGUAR
T4A34339
LAND ROVER
LR090684
LAND ROVER
LR125902
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.16~09.20 2000 AJ200 (180PS) X761 RN2177V PN0652 RN2344V PN0650
02.17~ 2000 AJ20P4 (250PS) X761 RN2177V PN0652 RN2344V PN0650
09.15~ 3000 306DT X761 RN2164VRN2177V PN0652PN0724 RN2344V PN0650
09.15~ 3000 AJ126 X761 RN2164VRN2177V PN0652PN0724 RN2344V PN0650
08.18~ 5000 AJ133S/508PS X761 RN2164VRN2177V PN0652PN31033PN0724 RN2344V PN46001PN0650
03.17~ 2000 204DTD/AJ200D L560 RN2177V PN0652 RN2344V PN0650
03.17~ 2000 AJ200 L560 RN2177V PN0652 RN2344V PN0650

Exemption from liability: the catalog data is advisory and can be used for reference only
