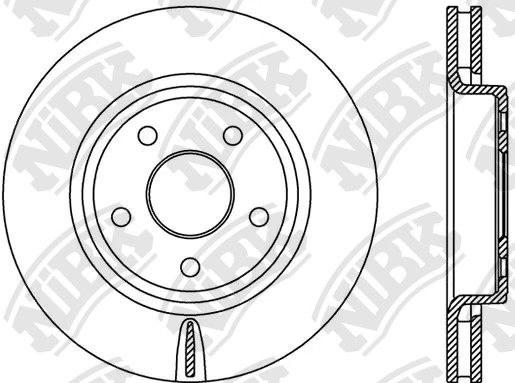

ROTOR DISC » RN2174V

Specification

Type
Vented
Disc Thickness (Max)
30
Num. of holes
5
Height
53
Centering Diameter
72
Front/Rear
Front
Pitch Circle Ø
127
Outter Ø
328
Drum Ø:
171
Disc Thickness (Min)
28.5
Structure Material
G3000

Cross Reference

CHRYSLER
2AMV9 269AB
CHRYSLER
52089 269AB
CHRYSLER
K52089269AB
DODGE
52089 269AB
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
08.06~ 3000 RN2174V PN8491 PN0429
06.05~10.10 3000 EXL WHUP74 RN2174V PN8491 PN0429 FN0677
06.05~10.10 4700 EVA WH RN2174V PN8491 RN1149 PN0429 FN0677

Exemption from liability: the catalog data is advisory and can be used for reference only
