NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1470V

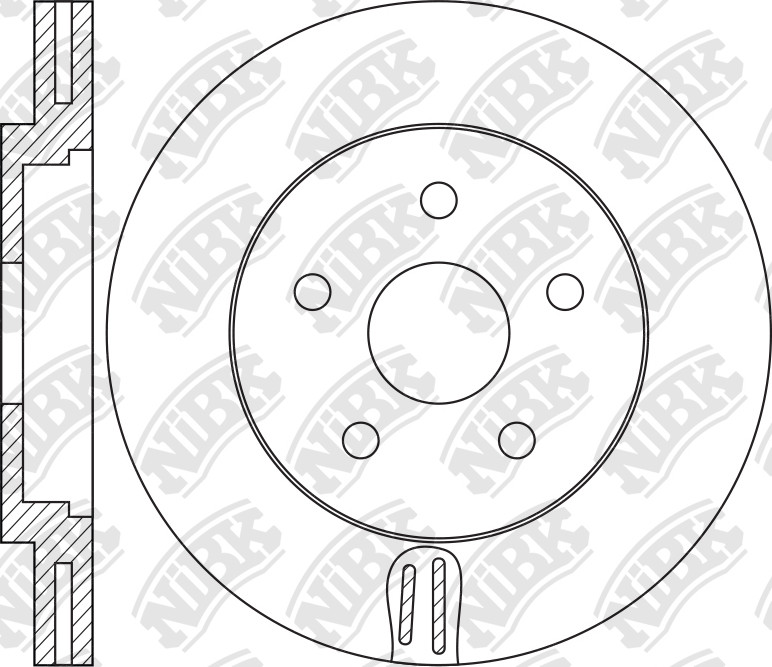

ROTOR DISC » RN1470V

Specification

Type

Vented

Disc Thickness (Max)

28

Num. of holes

5

Height

44

Centering Diameter

68

Front/Rear

Front

Pitch Circle Ø

114.3

Outter Ø

320

Hole Ø:

12.8

Disc Thickness (Min)

26

Drum Ø:

146

Structure Material

G3000

Cross Reference

NISSAN

40206-ET01A

RENAULT

40 20 698 28R

RENAULT

40 20 6JY 01A

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

NISSAN » Qashqai+2

08.08~03.14	1500	K9K	JJ10E	RN1470V	PN2444	RN1234V	PN2466	FN0621
08.08~03.14	2000	M9R	JJ10E	RN1470V	PN2444	RN1234V	PN2466	FN0621
08.08~03.14	2000	MR20DE	JJ10E	RN1303V RN1470V	PN2801 PN2444	RN1234V	PN2466	FN0621

NISSAN » Sentra

10.06~03.09

2500

QR25DE

B16X

RN1470V

PN2801

RN1302

PN2466

FN0621

RENAULT » Koleos

10.07~06.16	2000	M9R855	HY0K RHD	RN1470V	PN2444	RN1234V	PN2466	FN0621
04.11~10.13	2000	M9R865	HY0K LHD	RN1470V	PN2444	RN1234V	PN2466	FN0621
09.08~06.16	2500	2TR 703	HY0C	RN1470V	PN2444	RN1234V	PN2466	FN0621
09.08~06.16	2500	2TR 703	HY0E	RN1470V	PN2444	RN1234V	PN2466	FN0621
09.08~06.16	2500	2TR 705	HY0U	RN1470V	PN2444	RN1234V	PN2466	FN0621
