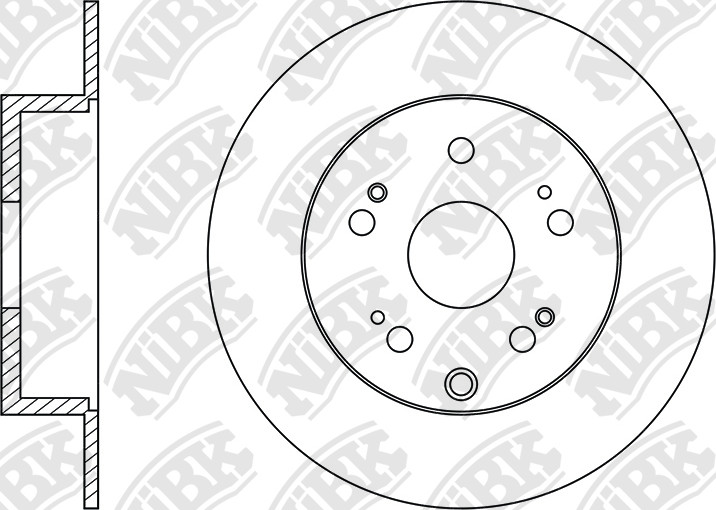

ROTOR DISC » RN1411

Specification

Type
Solid
Disc Thickness (Max)
11
Num. of holes
5
Height
64
Centering Diameter
70
Front/Rear
Rear
Pitch Circle Ø
120
Outter Ø
334
Drum Ø:
210
Disc Thickness (Min)
9
Structure Material
G3000

Cross Reference

BENDIX
521247
HONDA
42510-SZA-A00
HONDA
42510STXA00
HONDA
42510TK8A00
HONDA
42510TK8A01
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.06~04.13 3700 J37A1 YD2 RN1410V PN28001 RN1411 PN28002 FN0690
03.09~09.13 3700 J37A5 YB1 RN1410V PN28001 RN1411 PN28002 FN0690
08.10~08.13 3500 J35Z RL5 US RN2219V PN8802 RN1411 PN28002 FN8004
01.11~01.17 3500 J35Z8 EURO RN2219V PN8802 RN1411 PN28002 FN8004
04.08~04.15 3500 J35Z4 YF3 RN1410V PN28001 RN1411 PN28002 FN0690
04.08~04.15 3500 J35Z4 YF4 RN1410V PN28001 RN1411 PN28002 FN0690
05.08~12.11 3500 J35Z4 YF4 US RN1410V PN28001 RN1411 PN28002 FN0690

Exemption from liability: the catalog data is advisory and can be used for reference only
