ROTOR DISC » RN1391

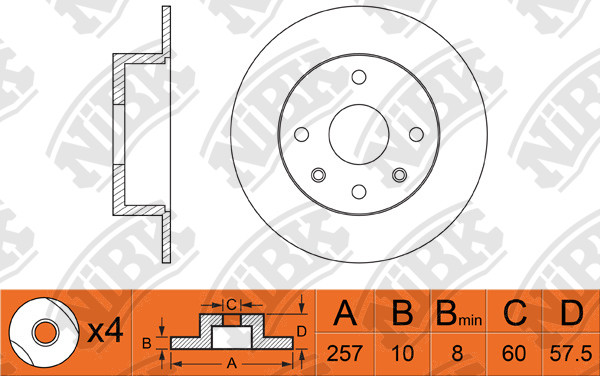

Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
4
Height
57.5
Centering Diameter
60
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
257
Drum Ø:
168
Disc Thickness (Min)
8
Structure Material
G3000
Cross Reference
BAOJUN (SGMW)
24535045
CHEVROLET
96549630
DAEWOO
96549630
DAEWOO-GM
96549630
GM
95977406
GM
96549630
SUZUKI
55611-85Z00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.04~12.12 | 1400 | F14D3 / L14 | J200 | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 01.03~12.12 | 1600 | F16D3 / LXT | J200 | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 01.03~03.13 | 1600 | F16D3 / LXT | JJ83 WGN | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 01.03~03.13 | 1800 | F18D3 | JJ83 WGN | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 11.04~10.11 | 1800 | T18SED | J200 | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 06.04~03.13 | 1800 | T18SED | M48 RHD | RN1324V | PN0374 | RN1391 | PN0442PN0376 | FN0658 |
| 01.07~06.14 | 2000 | Z20DM | J200 | RN1324V | PN0374 | RN1391 | PN0442 |
| 08.03~01.14 | 1400 | F14D3 / L14 | JE48 RHD | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 11.07~01.14 | 1600 | F16D3 / LXT | JJ53 RHD SDN | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
| 01.05~01.14 | 1600 | F16D3 / LXT | NA35 | RN1324V | PN0374 | RN1391 | PN0442FN12001PN0376 | FN0658 |
| 08.03~01.14 | 1600 | F16D3 / LXT | NA48 | RN1324V | PN0374 | RN1391 | PN0376PN0442 | FN0658 |
| 01.04~ | 1600 | F16D3 / LXT | NF19 | RN1324V | PN0374 | RN1391 | FN12001PN0442PN0376 | FN0658 |
| 08.03~01.14 | 1600 | F16D3 / LXT | NF35 | RN1324V | PN0374 | RN1391 | PN0442FN12001PN0376 | |
| 01.04~01.08 | 1800 | LDA | JD19 | RN1324V | PN0374 | RN1391 | PN0442PN0376FN12001 | FN0658 |
| 11.07~10.13 | 2000 | L34/U20SED | J200 | RN1324V | PN0374 | RN1391 | PN0442 | FN0658 |
