NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1325

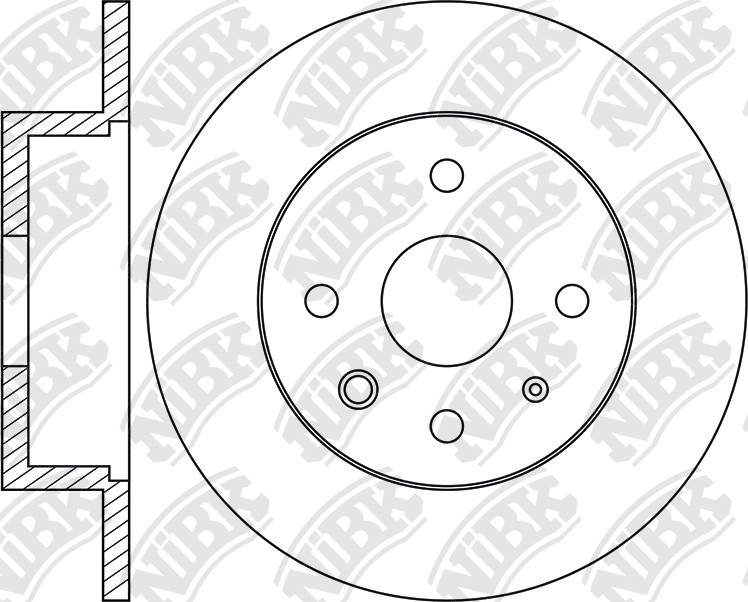

ROTOR DISC » RN1325

Specification

Type

Solid

Disc Thickness (Max)

12

Num. of holes

4

Height

58.5

Centering Diameter

60

Front/Rear

Rear

Pitch Circle Ø

115

Outter Ø

276

Drum Ø:

163

Disc Thickness (Min)

10

Structure Material

G3000

Cross Reference

CHEVROLET

5561186Z00

CHEVROLET

96328254

OEM

XFL9050445

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

CHEVROLET (GM) » Epica

06.06~01.12	2000	X20D1	LA69 GR	RN1323V	PN0380	RN1325	PN0375	FN0658
06.06~01.12	2000	X20D1	VJ5 GL	RN1323V	PN0380	RN1325	PN0375	FN0658
06.06~01.12	2000	X20D1/LBM	LF69 LHD EU	RN1323V	PN0380	RN1325	PN0375	FN0658
10.08~01.13	2000	X20D1/LBM	LF69 LHD RUS	RN1323V	PN0380	RN1325	PN0375	FN0658
01.07~01.12	2000	Z20S / LLW	LA69	RN1323V	PN0380	RN1325	PN0375	FN0658
06.04~01.06	2500	LBK	1VD69 CANADA	RN1323V	PN0380	RN1325	PN0375	FN0658
06.06~01.12	2500	X25D1	LA69	RN1323V	PN0380	RN1325	PN0375	FN0658

DAEWOO » Evanda

07.02~06.06	2000	X20SED	LA69	RN1324V	PN0374	RN1325	PN0375	FN0658
07.02~06.06	2000	X20SED	LF69	RN1324V	PN0374	RN1325	PN0375
