ROTOR DISC » RN1289

RN1289

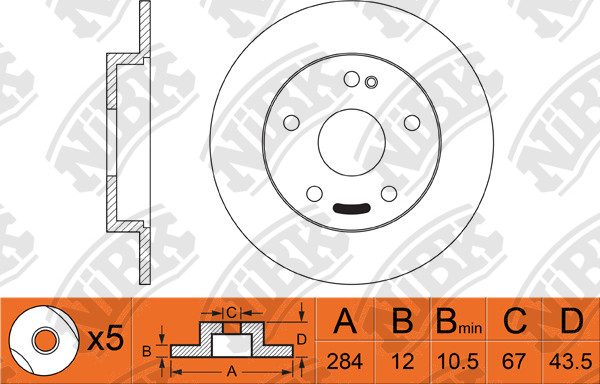

Specification

Type
Solid
Disc Thickness (Max)
12
Num. of holes
5
Height
43.5
Centering Diameter
67
Pitch Circle Ø
112
Front/Rear
Front
Outter Ø
284
Structure Material
G3000
Disc Thickness (Min)
10
Drum Ø:
154.3

Cross Reference

BENDIX
561696B
MERCEDES-BENZ
2024210212
MERCEDES-BENZ
A2024210212
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MERCEDES-BENZ   »   C 180

03.93~05.00 1800 M 111.920 W202 RN1289 PN0025 RN1288 PN0125PN0005W FN0515

MERCEDES-BENZ   »   C 200

06.93~07.98 2000 OM 601.913 W202 RN1289 PN0025 RN1288 PN0125PN0005W FN0515
10.96~07.98 2000 OM 604.915 W202 RN1289 PN0025 RN1288 PN0005WPN0125 FN0515

MERCEDES-BENZ   »   C 220d

02.96~10.00 2200 OM 604.910 W202 RN1289 PN0025 RN1288 PN0125PN0005W FN0515

MERCEDES-BENZ   »   C 250

05.93~05.97 2500 OM 605.910 W202 RN1289 PN0025 RN1288 PN0005W FN0515
