ROTOR DISC » RN1263V

RN1263V

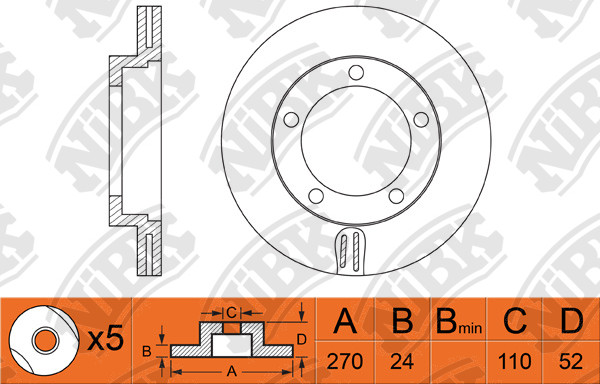

Specification

Num. of holes
5
Type
Vented
Front/Rear
Front
Outter Ø
270
Disc Thickness (Max)
24
Height
52
Centering Diameter
110
Structure Material
G3000
Hole Ø:
M12
Disc Thickness (Min)
22
Pitch Circle Ø
136

Cross Reference

MITSUBISHI
MC838751
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MITSUBISHI   »   Canter

10.93~05.99 4200 4D33 FE507B RN1263V PN3349 FN6602 FN4443
05.99~05.02 4200 4D33 FE50CB RN1263V PN3349 FN6602 FN4443
05.99~05.02 5200 4M51 FE50E PN3349RN1263V FN6602 FN4443
05.99~05.02 5200 4M51 FE51E PN3407RN1263VPN3349 FN6602 FN4443
05.99~05.02 5200 4M51 FE52E PN3349RN1263V FN6602 FN4443
