ROTOR DISC » RN1220V

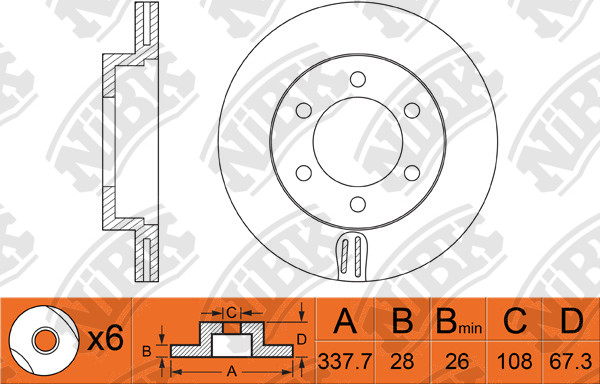

Specification
Type
Vented
Disc Thickness (Max)
28
Num. of holes
6
Height
67.3
Centering Diameter
108
Pitch Circle Ø
139.7
Front/Rear
Front
Outter Ø
337.7
Drum Ø:
172
Structure Material
G3000
Disc Thickness (Min)
26
Cross Reference
LEXUS
43512-60160
LEXUS
4351260151
OEM
4352130150
TOYOTA
43512-0K250
TOYOTA
43512-60150
TOYOTA
43512-60151
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.02~08.09 | 4000 | 1GR-FE | GRN210 | RN1446VRN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN215L | RN1220VRN1446V | PN1482 | RN1216V | PN1243 | FN0642 |
| 08.02~08.09 | 4700 | 2UZ-FE | UZN210 | RN1220VRN1446V | PN1482 | RN1216V | PN1243 | FN0642 |
| 08.02~05.20 | 4700 | 2UZ-FE | UZN215 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 01.16~ | 2400 | 2GD-FTV | GUN155R | RN1945VRN1220V | PN1872 | RN1216VRN1553V | PN1243PN1846 | FN0642 |
| 03.16~ | 2400 | 2GD-FTV | GUN166R | RN1220V | PN1872 | RN1553VDN1102 | FN0620TPN1846PN1243 | FN0642 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ120 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ125 | RN1220V | PN1482 | RN1216V | PN1243 | |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ125L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.04 | 2700 | 3RZ-FE | RZJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ125 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 1KD-FTV | KDJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 08.04~08.09 | 3000 | 1KD-FTV | KDJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 11.02~08.09 | 3000 | 1KD-FTV | KDJ120W | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 5L-E | LJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 5L-E | LJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 3000 | 5L-E | LJ125 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ120W | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ125 | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120W | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ121R | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ125L | RN1220V | PN1482 | RN1216V | PN1243 | FN0642 |
