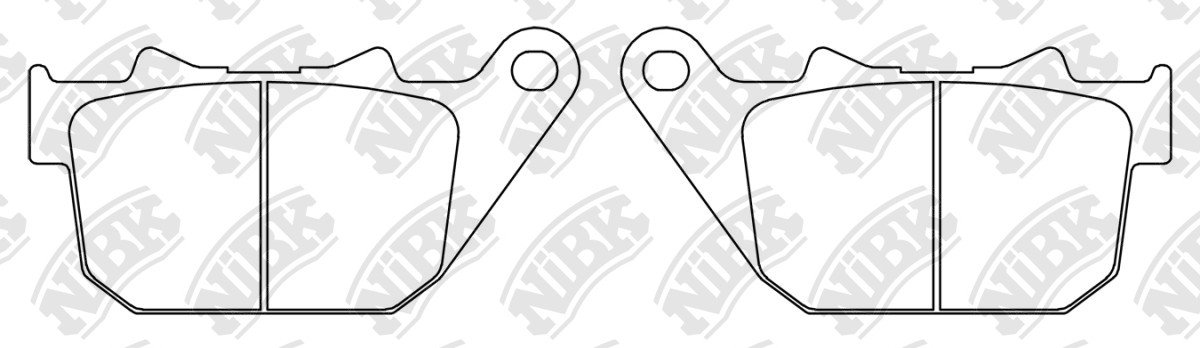

MOTORCYCLE BRAKE PADS » PM224

Specification

Length-1
85.9
Width-1
44.5
Thick-1
10
Length-2
85.9
Width-2
44.5
Thick-2
10
TYP
R HD

Cross Reference

HARLEY DAVIDSON
42029 07
HARLEY DAVIDSON
42836 04
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.04~01.07 1200 PM225 PM224
01.04~01.08 1200 PM225 PM224
01.07~01.07 1200 PM225 PM224
01.08~ 1200 PM225 PM224
01.10~ 1200 PM225 PM224
01.04~01.07 883 PM225 PM224
01.04~01.08 883 PM225 PM224
01.04~01.10 883 PM225 PM224
01.05~01.09 883 PM225 PM224
01.06~ 883 PM225 PM224
01.09~ 883 PM225 PM224
01.10~ 883 PM225 PM224
01.11~ 883 PM225 PM224
01.08~01.10 1200 PM066 PM224
01.10~ 1200 PM066 PM224

Exemption from liability: the catalog data is advisory and can be used for reference only
