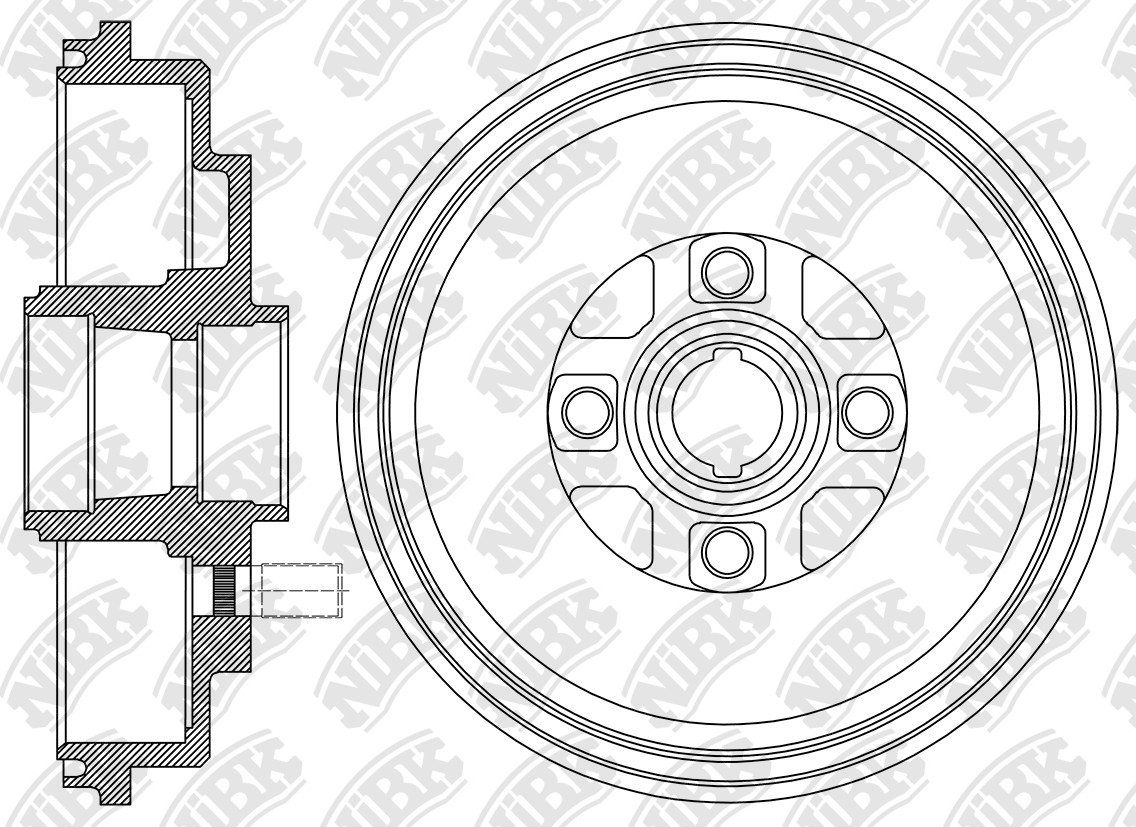

DRUM BRAKE » DN1430

DN1430

Specification

Outter Ø
213
Num. of holes
4
Hole Ø
13.8
Centering Diameter
45-46.9
Height
87.2
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

DAIHATSU
42403-87703-000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

DAIHATSU   »   Charade

03.93~04.00 1000 CB G202 DN1430
11.95~05.00 1300 HC-C G200RS RHD PN6340 DN1430 FN0034
01.93~05.00 1300 HC-E G200S PN6340 DN1430 FN0034PN6353FN0035
08.93~05.00 1500 HE-EG G203S PN6340 DN1430 PN6353FN0034
