NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1382

Product
Application

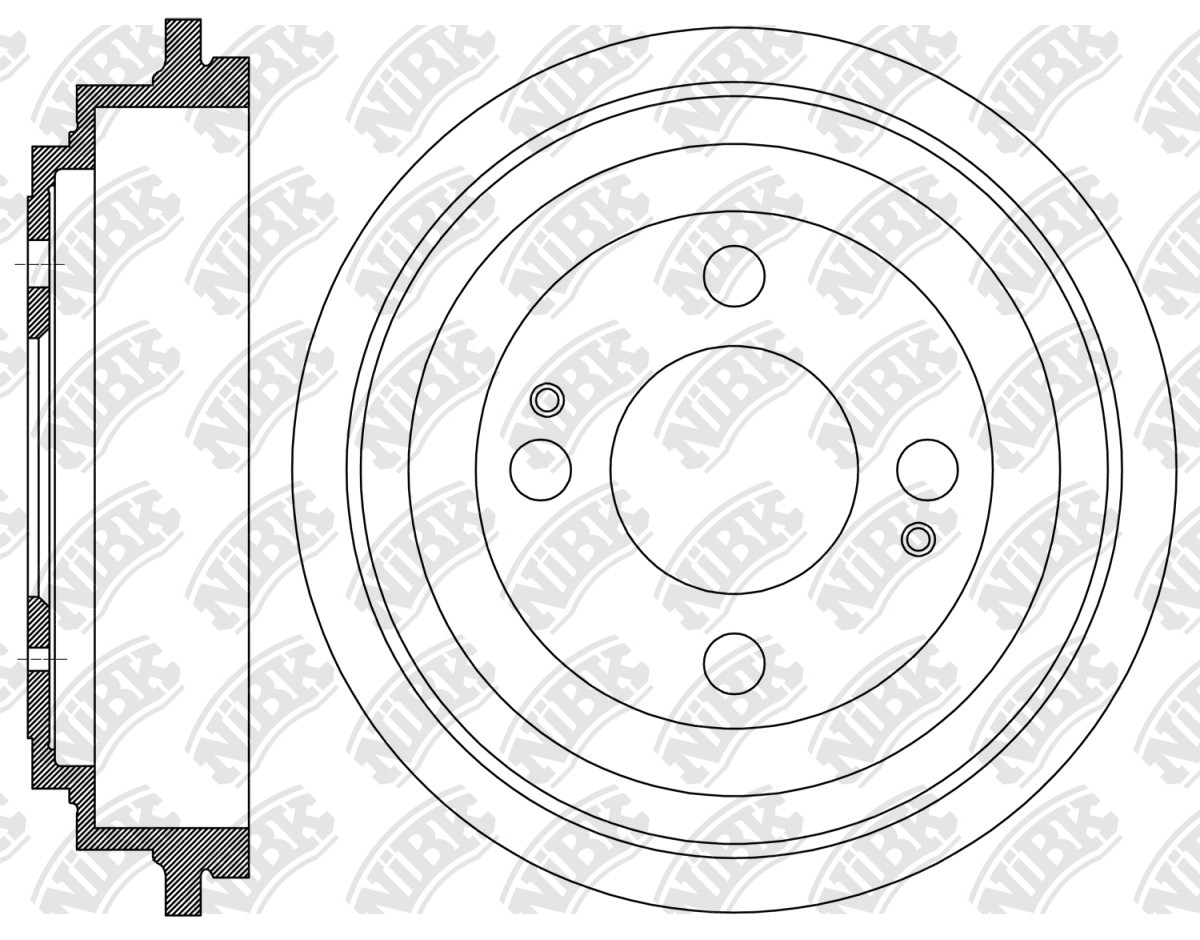

DRUM BRAKE » DN1382

Specification

Outter Ø

224

Num. of holes

4

Hole Ø

12.6

Centering Diameter

61

Height

56

Pitch Circle Ø

100

Drum Ø

180

Structure Material

G3000

Cross Reference

HONDA

42610-SAA-000

HONDA

42610-SAA-Q00

HONDA

42610-SEN-H00

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HONDA » Amaze

12.15~02.18	1200	L12B3	DF1 LHD		PN8824	DN1382	FN0726
04.13~02.18	1200	L12B3	DF1 RHD		PN8824	DN1382	FN0726
12.15~02.18	1300	L13Z1	DF1 GL		PN8824	DN1382	FN0726

HONDA » Brio

01.11~05.18	1200	L12B	DD1		PN8824	DN1382	FN0726
01.11~05.18	1200	L12B	DD1LHD		PN8824	DN1382	FN0726

HONDA » City

01.02~01.06	1300	L13A#	GD6 LHD	RN1138V	PN8265	DN1382	FN5546
01.06~01.09	1300	L13A#	GD6 LHD	RN1138V	PN8265	DN1382	FN5546
11.02~09.05	1500	L15A1	HGD8 RHD	RN1138V	PN8265	DN1382 RN1052	PN8206 FN5546
09.05~01.08	1500	L15A1	HGD8 RHD	RN1138V	PN8265	DN1382 RN1052	PN8206 FN5546

HONDA » City ZX

01.02~12.08

1500

L15A

GD8

RN1138V

PN8265 PN8824

DN1382 RN1052

FN5546 PN8206

HONDA » Fit

10.07~08.13	1300	L13A	GE6	RN1089V RN1350V	PN8263 PN8868 PN8264	DN1382	FN5534 PN8206 FN28002
06.01~09.07	1300	L13A(i-DSI)	GD1 JPN	RN1350V RN1376V	PN8265 PN8263	RN1052 DN1382	PN8206 FN5534
06.01~09.07	1500	L15A	GD3 JPN	RN1376V RN1138V	PN8265	RN1052 DN1382	FN5534 PN8206

HONDA » Fit Aria

12.02~10.05	1300	L13A	GD6	RN1350V	PN8263	DN1382	FN5534
12.02~01.09	1500	L15A	GD8	RN1138V	PN8265	DN1382	FN5534

HONDA » Jazz

01.02~06.09	1200	L12A1	GD5	RN1138V RN1376V	PN8265	RN1047 DN1382 RN1052	PN8206 FN5534
01.02~05.09	1300	L13A1	JHMGD1 RHD	RN1138V RN1376V	PN8265	DN1382 RN1052	PN8206 FN5534
01.02~12.08	1500	L15A1	GD3 LHD	RN1138V	PN8265	DN1382	FN5534
01.02~12.08	1500	L15A1	GD3 RHD	RN1138V	PN8265	DN1382	FN5534
