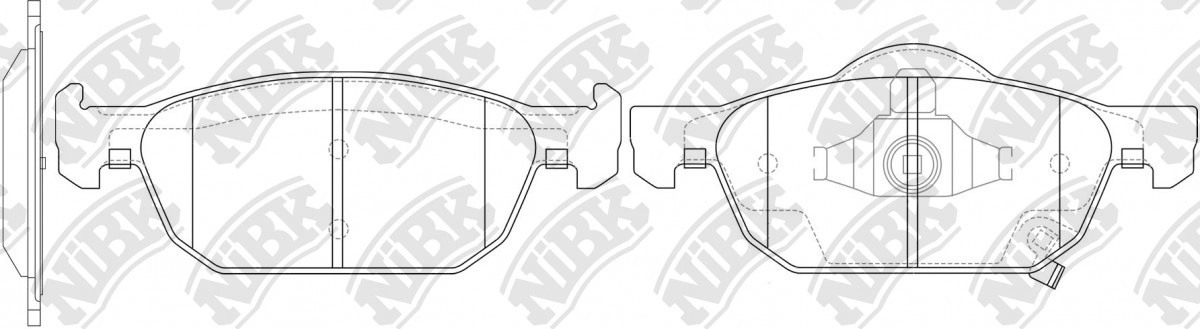

BRAKE PADS » PN8863
Specification
Length-1
155.1
Width-1
62.3
Thickness-1
17
Length-2
155.1
Width-2
55.1
Thickness-2
17
Pcs In Set
4
Brake System
ATE
Cross Reference
AKEBONO
AN-8172WK
BENDIX
DB2308
FMSI
D2009-9239
FMSI
D2147-9387
HONDA
45022-TGN-G00
HONDA
45022-TL1-G00
HONDA
45022-TL1-G01
HONDA
45022-TV0-E00
HONDA
45022-TV0-E01
HONDA
45022-TV0-E02
HONDA
45022-TV2-E00
HONDA
45022-TV2-E01
HONDA
45022-TV2-E02
KASHIYAMA
D5165M
WVA
24796
WVA
24797
WVA
24798
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.08~07.11 | 2000 | R20A3 | CU1 LHD | RN1408V | PN8863 | RN1409 | PN8864 | FN0663 |
| 05.08~07.11 | 2000 | R20A3 | CU1 RHD | RN1408V | PN8863 | RN1409 | PN8864 | |
| 07.11~03.13 | 2000 | R20A3 | CU1 RHD | RN1408V | PN8863 | RN1409 | PN8864 | |
| 01.08~03.13 | 2000 | R20A3 | EURO | RN1406VRN1408V | PN8865PN8863PN8465 | RN1409RN1407 | PN8864PN8807 | |
| 05.08~07.11 | 2200 | N22B1 | CU3 | RN1408V | PN8863 | RN1407 | PN8807 | FN0663 |
| 09.09~06.15 | 2200 | N22B1/2 | EURO | RN1204VRN1406V | PN8863PN8865 | RN1407 | PN8807 | FN0663 |
| 09.09~12.10 | 2000 | R20A3 | EURO | RN1408V | PN8863 | RN1409 | PN8864 | |
| 07.08~06.15 | 2200 | N22B1 | CW3 | RN1408VRN1406V | PN8865PN8863 | RN1407 | PN8807 | FN0663 |
| 09.09~10.10 | 2200 | N22B1 | EURO | RN1408V | PN8863 | RN1407 | PN8807 | FN0663 |
| 07.08~06.15 | 2400 | K24Z3 | CW2 | RN1406V | PN8865PN8863 | RN1407 | PN8807 | FN0663 |
| 05.17~ | 1000 | P10A2 | FK6 | RN1600V | PN8863 | RN2283 | PN8813 | |
| 05.16~08.19 | 1500 | L15B | FC1 LHD | RN1600V | PN8863 | RN2283 | PN8813 | |
| 05.16~03.21 | 1500 | L15B7 | FK7 RHD | RN1600V | PN8863 | RN2283 | PN8813 | |
| 03.21~ | 1500 | L15C | FL1 | PN8485PN8863 | PN8813PN8822 | |||
| 05.17~03.21 | 1600 | N16A1 | FC8 | RN1600V | PN8863 | RN2283 | PN8813 | |
| 01.14~12.16 | 1600 | N16A1 | FK | RN1600V | PN8863 | RN1599 | PN1840 | |
| 02.13~12.16 | 1600 | N16A1 | FK3 | RN1600V | PN8863 | RN1599 | PN1840 | |
| 02.12~12.16 | 1800 | R18Z4 | FK | RN1600V | PN8863 | RN1599 | PN1840 | |
| 01.12~01.15 | 1800 | R18Z4 | FK2 HB | RN1600V | PN8863 | RN1599 | PN1840 |
