MOTORCYCLE BRAKE PADS » PM548

PM548

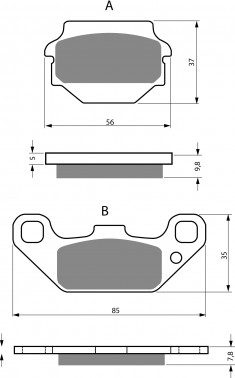

Specification

Length-1
56
Width-1
37
Thick-1
9.8
Length-2
85
Width-2
35
Thick-2
7.8
TYP
R

Cross Reference

KAWASAKI
43082 1163
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

KAWASAKI   »   KEF-300

01.95~01.99 300 PM548 PM210

KAWASAKI   »   KEF-300

01.01~01.02 300 PM548 PM210

KAWASAKI   »   KSF-250

01.87~01.02 250 PM548 PM210

KAWASAKI   »   KSF-250

01.01~01.02 250 PM548

KAWASAKI   »   KXF-250

01.87~01.02 250 PM548 PM210

KAWASAKI   »   KXT-250

01.87~ 250 PM548 PM210

SUZUKI   »   LT-230

01.85~01.88 230 PM548 PM332

SUZUKI   »   LT-250

01.88~01.94 250 PM548 PM550
01.89~01.90 250 PM548 PM210

SUZUKI   »   LT-500

01.87~01.95 500 PM548 PM550
